Hubbell Hubbell HBL5262GYSA
Hubbell HBL5262GYSA
Kirby Risk #: 1847043
UPC: 00783585060118, 78358506011, 783585060118
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

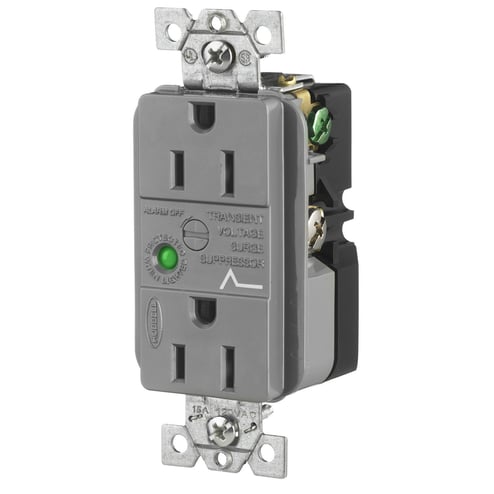

Hubbell Wiring Device Kellems, TVSS Duplex Receptacle with Light andAlarm, 15A 125V, 5-15R, Gray
Modified Industry Description
15A125V GRAY DPLX SURGE RCPT NEMA
AD Description
Wiring Device-Kellems SpikeShield® Circuit Guard® HBL5262GYSA Duplex Specification Grade Standard TVSS Duplex Receptacle With Light, Alarm, 125 VAC, 15 A, 60 Hz, 1 Phase
Specifications
| Amperage Rating |
15
|
|---|---|
| Application |
Decorator Duplex with Light and Alarm
|
| Brand Name |
Hubbell
|
| Connection |
Terminal Screws
|
| Country of Origin |
CN
|
| Environmental_Conditions |
Indoor dry unless protected by an additional means
|
| Frequency_Rating |
60
|
| Material |
Composite
|
| Mounting |
Mounting Screws
|
| Operating_Temperature |
32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
|
| Outlet |
Straight Blade
|
| Phase |
1
|
| Response_Time |
Approx 5 ns
|
| Size |
Standard
|
| Special Features |
|
| Standard |
UL 1449 3rd Edition, UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type_Of_Indicators |
LED and Audible Alarm
|
| Type |
Surge Protection Receptacles
|
| Voltage Rating |
125
|
