Arlington Arlington L15AST
Arlington L15AST
Kirby Risk #: 1837423
UPC: 018997800442, 01899780044, 00018997800442
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Arlington
Description
Industry Description

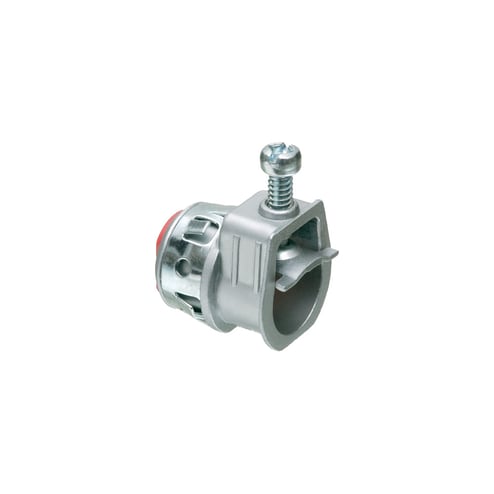

Single screw zinc die-cast saddle type connector with spring steel clip for NM, Flex, AC, ACG90, AC90 Teck90 MCI steel and aluminum jacketed cables. Cable range .460 to .585 with an end stop diameter of .340 x .430.
Modified Industry Description
3/8 IN FLEXIBLE CONNECTOR SNAP TITE Die-Cast
AD Description
Arlington SNAP-TITE® L15AST Single Screw Cable Connector With Insulated Throat and Spring Steel Clip, 3/8 in Trade, 1/2 in Knockout, 0.46 to 0.585 in Cable Openings, Die Cast Zinc
Specifications
| Application |
NM/Flex/AC Cable, MC Steel and Aluminum Jacketed
|
|---|---|
| Brand Name |
Arlington
|
| Color |
Silver
|
| Country of Origin |
USA
|
| Material |
Die Cast Zinc
|
| Special Features |
|
| Standard |
UL, CSA
|
| Sub_Brand |
Arlington
|
| Trade_Size |
3/8
|
| Type |
Single Screw
|
