Hubbell Hubbell HBL7303C
Hubbell HBL7303C
Kirby Risk #: 1835298
UPC: 78358501538, 783585015385, 00783585015385
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

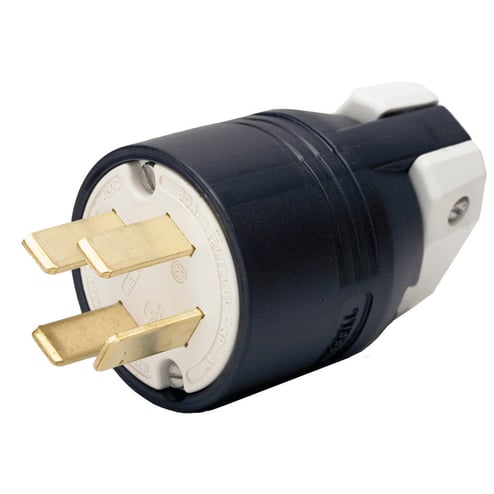

Hubbell Wiring Device Kellems, Straight Blade Devices, Male Plug, HeavyDuty, Industrial/Commercial Grade, Straight, 4-Pole 4-Wire Non-Grounding, 60A 3 Phase 120/208 V AC, 18-60R, Black, Single Pack
Modified Industry Description
BLACK STRAIGHT POWER PLUG, 60A, 120/208V
AD Description
Wiring Device-Kellems HBL7303C 3-Phase Heavy Duty Male Non-Grounding Straight Blade Plug, 120/208 VAC, 60 A, 4 Poles
Specifications
| Amperage Rating |
60
|
|---|---|
| Application |
Industrial/Commercial
|
| Brand Name |
Hubbell
|
| Color |
Black/White
|
| Connection |
Terminal Screws
|
| Conductor Size |
#12 AWG to #4 AWG
|
| Cord_Type |
All Portable
|
| Country of Origin |
PR
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Rating |
18-60P
|
| Number_Of_Poles |
4
|
| Number_Of_Wires |
4
|
| Phase |
3
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Insulgrip
|
| Voltage Rating |
120/208
|
| Wattage |
12,480
|
