NSI NSi AL-P2-H12
NSI AL-P2-H12
Kirby Risk #: 1832753
UPC: 00662381165664, 662381991843, 662381165664, 66238116566
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

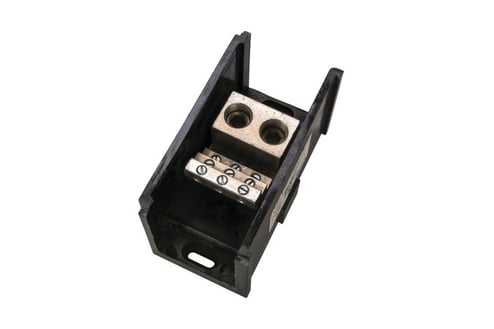

Power Distribution Block (2) 350 MCM-6 AWG Primary (12) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
Modified Industry Description
(2) 350 MCM - 6 AWG Primary (12) 4-14 Power DiSTRibution Block
AD Description
NSI Connector Bloks™ AL-P2-H12 Double Primary Power Distribution Block, 600 VAC, 620 A, 1 Poles, 6 AWG to 350 kcmil Wire, Aluminum
Specifications
| Amperage Rating |
620
|
|---|---|
| Application |
Terminate, Splice, Tap Power Connectors
|
| Brand Name |
NSi
|
| Color |
Black
|
| Conductor Size |
(2) 350 MCM-6 AWG(Line) - (12) 4-14 AWG(Load)
|
| Country of Origin |
USA
|
| Material |
Aluminum
|
| Mounting |
2 Mounting Holes
|
| Number_Of_Poles |
1
|
| Operating_Voltage |
14
|
| Size |
L=5.50 - H=3.25 - W=2.90
|
| Special Features |
|
| Standard |
Recognized to UL1059
|
| Sub_Brand |
NSi
|
| Type |
Double Primary
|
| Voltage Rating |
600
|
