Burndy Burndy YGHS28

Name: Burndy YGHS28
Brand: Burndy
SKU: 1830324
Price: 159.48 USD
Availability: InStock

Burndy YGHS28

Kirby Risk #: 1830324

UPC: 781810220474, 00781810220474, 78181022047

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Burndy

Description

Industry Description

Heavy Duty Irreversible Compression Terminals, 2.59 in L.

Modified Industry Description

CU COMPR SPLICE 4/0 AWG STR

AD Description

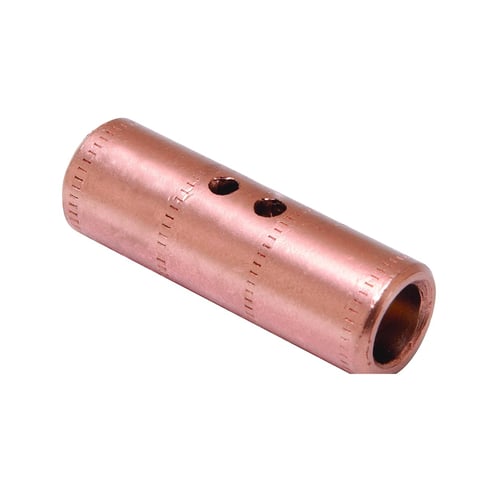

BURNDY® HYLINK™ YGHS28 1-Stage Type YGHS Heavy Duty Irreversible Grounding Compression Splice, 4/0 AWG Stranded Copper Conductor, 2.59 in L, Copper

Application	For Direct Burial In Earth Or Concrete
Brand Name	Burndy
Conductor Range	4/0 AWG Stranded
Conductor Type	Stranded Copper
Conductor Size	4/0
Country of Origin	US
Finish	Unplated
Material	Copper
Package_Quantity	1
Size	2.59 IN Length X 1.18 Dimension B
Special Features	17 index number Die set catalog number and (number Of crimps) HYPRESS™ Y35, Y39, Y750, PAT750 tool, U30RT die, (2) Y45 tool, U30RT die with PT6515 adapter, (2) Y46 tool, U30RT die with PUADP-1 adapter Each conductor element has an inspection probe hole and a center stop to ensure proper cable insertion Heavy duty HYLINK™ ground splice designed not only to carry short circuit load, but to also withstand high mechanical stress Pre-filled with Penetrox® compound and strip sealed
Standard	UL467, 486A Listed, CSA Certified, RoHS Compatible, IEEE-837
Sub_Brand	Burndy
Type	1-Stage Type YGHS Heavy Duty Irreversible
