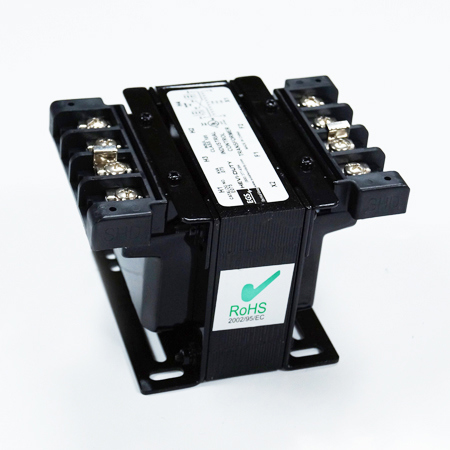

SolaHD SolaHD E050E


Description

Industry Description

Encapsulated Industrial Control Transformer 50VA, Volts Primary: 120x240, Volts Secondary: 24, Frequency: 60 HZ

Modified Industry Description

50VA ENCAPSULATED CONTROL TRANSFORMER, 120 x 240V PRIMARY, 24V SECONDARY

AD Description

SolaHD E050E SBE Encapsulated Control Transformer, 120/240 VAC Primary, 24 VAC Secondary, 0.05 kVA, 50/60 Hz, 1 Phase

Vendor Description

The SBE encapsulated industrial control transformers are epoxy encapsulated to seal the transformer windings against moisture, dirt and industrial contaminants. Extra deep, molded terminal barriers reduce the chance of electrical failure as the result of arcing or frayed lead wires. The rugged construction and proven reliability of the SBE design is uniquely suited for all industrial environments.

Specifications

Brand Name
SolaHD
Country of Origin
VN
Frequency_Rating
50/60
Insulation
105
KVA_Rating
0.05
Mounting
Heavy Gauge Steel Mounting Plate
Number_Of_Channels
120/240vac
Phase
1
Power_Rating
0.05
Primary_Voltage
120/240
Processor
24
Secondary_Voltage
24
Special Features

  • 131 deg F rise, 105 deg C insulation system to minimize heat
  • Epoxy encapsulated to protect cores and coils against moisture, dirt and other contaminants
  • Heavy gauge steel mounting plate
  • Integrally molded, flame retardant (IEC 707/ISO class 1210) terminal blocks provide greater terminal contact area and improved conductivity
  • Interleaved copper windings reduce I2R losses and maximize efficiency
  • Meets or exceeds NEMA standard ST 1 and ANSI C89.1 for load inrush capability
  • Mounting dimensions are compatible with similar control transformers
  • Secondary fuse holders (FB2X) included for 13/32 x 1-1/2 in cartridges
Standard
UL (CANADA AND US)
Sub_Brand
SolaHD
Type
Encapsulated
VA_Rating
50
Wattage
50VA
