Hubbell Hubbell HBL560CS1W
Hubbell HBL560CS1W
Kirby Risk #: 1826401
UPC: 78358501068, 783585010687, 00783585010687
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Heavy Duty Products, Insulgrip Pin andSleeve Devices, Industrial Grade, Female, Connector Body, 60A 600V AC,4-Pole 5-Wire Grounding Style 1, Terminal Screws, Gray and Black,Watertight
Modified Industry Description
60A 600V 3 POLE 4 WIRE FEMALE SLEEVE CONNECTOR BODY STYLE 1
AD Description

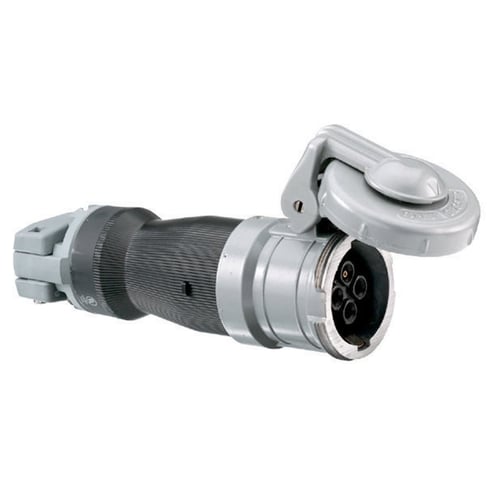

Wiring Device-Kellems Insulgrip® HBL560CS1W Female Heavy Duty Standard Watertight Pin and Sleeve Connector, 600 VAC/250 VDC, 60 A, 4 Poles, 5 Wires, Black/Gray
Specifications
| Amperage Rating |
60
|
|---|---|
| Application |
High Ampacity Connections
|
| Brand Name |
Hubbell
|
| Color |
Black/Gray
|
| Conductor Range |
#6AWG - #4AWG
|
| Connection |
Pressure Screw Terminal
|
| Country of Origin |
PR
|
| Environmental_Conditions |
Water Tight
|
| Insulation |
Insulated Body
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Rating |
Non-NEMA
|
| Number Of Conductors |
5-Wire Grounding
|
| Number_Of_Poles |
4
|
| Size |
Standard
|
| Special Features |
|
| Standard |
UL 498, and UL1686
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
|
| Type |
Standard
|
| Voltage Rating |
600/250
|
