Description

Industry Description

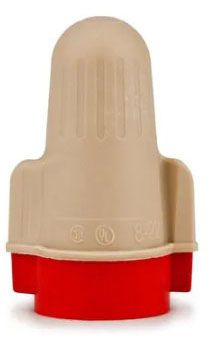

3M™ Performance Plus™ Wire Connectors are designed with a uniquely flexible springthat has generous room for expansion and a strong bite for a secure connection. Becauseof their increased wire range, just three Performance Plus wire connectors handle thework of eight standard connectors. And theflexible skirt helps prevent copper exposure for enhanced safety.

Modified Industry Description

22 - 8 AWG - TAN/RED SPRING CONNECTOR

Specifications

Brand Name
3M
Color
Tan/Red
Conductor Range
22-8
Connection
Twist On
Country of Origin
US
Label_Description
3M(TM) PERFORMANCE PLUS WIRE CONNECTOR T/R+, SUPER TAN, 750 PER JUG
Material
Spring Steel
Package_Quantity
750
Special Features

  • (2)18 AWG up to (5) 12 AWG wire combinations
  • 1000 VAC for signs, fixtures or luminaires
  • 750/jug
  • Compact size and red miniskirt
  • Corrosion resistant coating
  • Flame retardant
  • One connector replaces 3 (yellow, red and tan) in the majority of all field applications
  • Polypropylene and thermoplastic elastomer insulation
  • Quick bite spring design
  • Simplifies selection of the right connector for a wide range of wiring jobs
  • Smooth, comfortable feel
  • Specifically created for the residential markets
Standard
UL CE IEC and CSA
Sub_Brand
3M
Temperature_Rating
221
Type
Wing Nut
Voltage Rating
600
Wire_Type
Copper
