Burndy Burndy GAR3904TC


Description

Industry Description

Water pipe Ground Connector, 2-1/2 "- 3-1/2"Rod, Large, smooth connector contact area between pipe and ground clamp.

Modified Industry Description

WTR PIPE GRD CONN 2 1/2 - 3 1/2 ROD

AD Description

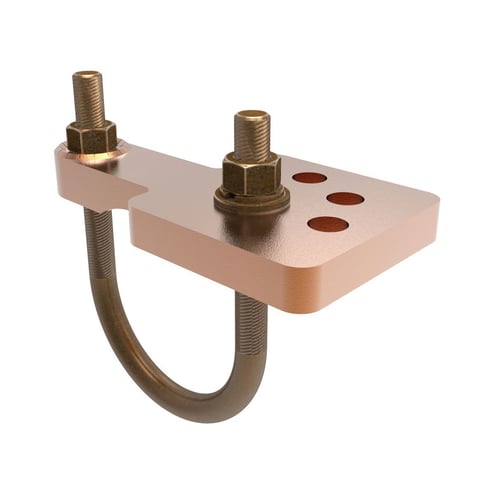

BURNDY® GAR3904TC GAR-TC Large Mechanical Grounding Connector, 2-1/2 to 3-1/2 in Rod, Copper

Vendor Description

All BURNDY® mechanical grounding connectors have been designed for easy installation and for outstanding durability. Only the finest high copper alloys are used in their manufacture, ensuring top performance under the most extreme environmental conditions. UL 467 listed for direct burial applications in earth or concrete.

Specifications

Application
For Direct Burial, Water Pipe As Well As Structural And Reinforcing Rod Shapes
Bolt_Size
3/8-16
Brand Name
Burndy
Country of Origin
MX
Finish
Unplated
Material
Copper
Package_Quantity
1
Special Features

  • 2-1/2 to 3-1/2 in IPS pipe
  • 240 in-lb installation torque
  • 3-gang/8 in bolt size
  • Allowing a 2-hole compression terminal to be directly connected to water pipe as well as structural and reinforcing rod shapes
  • Allows direct mounting of 2-hole compression terminals up to 750 kcmil to pipe
  • Durium silicon bronze hardware
  • Large smooth connector contact area between pipe and ground clamp
  • Made of high conductivity copper
  • Pre-drilled pad for (2) 3-gang/8 in bolts on 1 in centers
  • Provide long lasting corrosion-resistance acceptable for direct burial in earth or concrete
  • Provides large surface contact area to maximize contact area between connector and pipe
  • Provides maximum flexibility for field installation
  • Provides quality assurance to recognized industry National electrical Code® standards from an independent party
  • Silicon bronze screw
  • Simplified installation
  • The GAR-TC mounting pad permits parallel, 45 deg or 90 deg angle connections to the pipe
  • Type GAR-TC is a high conductivity copper ground connector that features a pre-drilled pad
  • Type GAR-TC is acceptable for direct burial
Standard
UL467 Listed, RoHS Compatible
Sub_Brand
Burndy
Type
Large
