Intermatic Intermatic K4021C


Description

Industry Description

The 120V 50/60Hz 1800W "T" FIX MOUNT The K4000 Series Fixed Position Mounting Photo Controls are thermal-type photo controls that fit into a standard outlet box, post lamp, or wall pack. The photo controls provide dusk-to-dawn lighting control, along with a delay action, which eliminates loads switching OFF due to car headlights and lightning. The thermal-type controls feature a cadmium sulfide photocell and a sonic-welded polycarbonate case and lens to seal out moisture. The design utilizes a dual temperature compensating bi-metal and composite resistor for reliable long life operation over ambient temperature extremes.

Modified Industry Description

1800W 120V - T FIX PHOTOCELL

AD Description

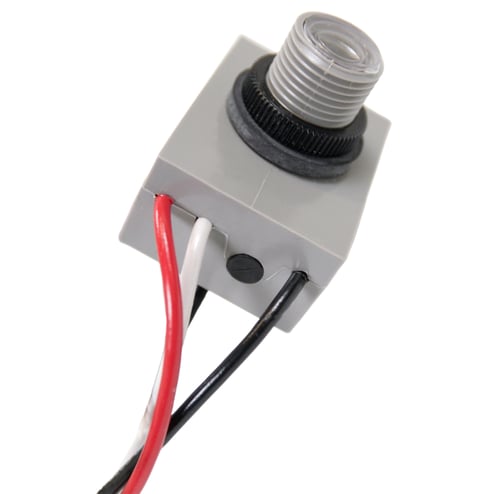

Intermatic® K4021C Thermal Photocontrol, 120 VAC, Fixed Mount

Vendor Description

These photocontrols install within lighting fixtures, post lamps, or in-wall boxes to provide dusk-to-dawn ON/OFF control of outdoor lighting.

Specifications

Application
Dusk to Dawn cntrl.
Ballast_Power_Rating
1000
Brand Name
Intermatic
Color
Gray
Connection
Color coded Leads
Country of Origin
MX
Enclosure
Plastic Outdoor
Environmental_Conditions
Indoor/Outdoor
Frequency_Rating
50/60
Mounting
Locking Type
Mounting_Type
Fixed
Operating_Temperature
(-)40 - 158 DEG F
Power_Consumption
3 watts Max.
Sensitivity
1 FC ON/10 FC OFF
Sensor
Cad. Sulft.
Size
1-13/16 LENGTH X 1-5/16 WIDTH X 1-9/16 DEPTH IN, 4.6 LENGTH X 3.3 WIDTH X 4 DEPTH CM
Source
Automatic Switching
Special Features

  • -40 to 150 deg F operating temperature
  • 3/8 in to 18 NPSM, 3/4 in long stem with locking nut and washer gasket
  • 9 in L wire lead
  • Compact size fits into standard outlet box, post lamp, wall pack and other lighting fixtures
  • Delay feature prevents unwanted OFF switching
  • Front photocontrol sensor location
  • Mechanical bimetal switch with cadmium sulfide photocell
Standard
ANSI C136.10
Sub_Brand
Intermatic
Supply_Voltage
120
Timing_Range
Dusk On - Dawn OFF
Tungsten_Current_Rating
15
Tungsten_Watts
1800
Type
Relay
Voltage Rating
210-240
Wattage
1800
