Burndy Burndy GB26
Burndy GB26
Kirby Risk #: 1818599
UPC: 781810231210, 00781810231210, 78181023121
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Burndy
Description
Industry Description
Mechanical Grounding Connector, Cable to 1/4" Thick Bar, 4 AWG (Sol)-2/0 AWG (Str), 3/8" Stud, 1-1/2 IN Width.
Modified Industry Description
4 AWG (STR) / 2/0 AWG (SOL) - MECHANCIAL GROUNDING CONNECTOR CABLE TO 1/4 IN THICK BAR , 3/8 IN STUD
AD Description

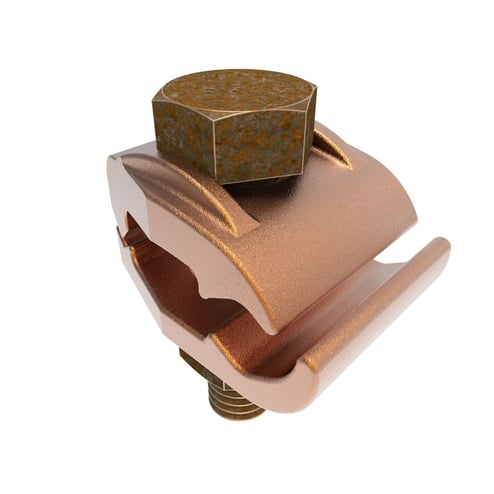

BURNDY® GB26 Mechanical Grounding Connector, 4 to 2/0 AWG Conductor, 1/4 in THK Bar, Copper Alloy
Specifications
| Application |
For Copper Cable To Bar, Direct Burial Cable
|
|---|---|
| Bolt_Size |
3/8 In
|
| Brand Name |
Burndy
|
| Conductor_Range_Main_Primary |
4 AWG Solid - 2/0 AWG Stranded
|
| Country of Origin |
MX
|
| Material |
High Copper Alloy
|
| Package_Quantity |
1
|
| Special Features |
Features: High Copper Alloy Ground Connector For Joining A Range Of Cable To 1/4 IN Thick Bar, Type GB Separates Cable From Bar, One-Wrench Installation, UL467 Listed, The High Copper Alloy Cast Body And DURIUM Bolts, Nuts, And Lockwashers Make The GB And GBM Suitable For Direct Burial In Concrete Or Ground, Width: 1-1/2 IN, Installation Torque: 240 IN-LB, Height: 2 IN, Bar Thickness: 1/4 IN
|
| Standard |
UL467 Listed, RoHS Compatible
|
| Sub_Brand |
Burndy
|
| Type |
GB
|
