Burndy Burndy GP6426


Description

Industry Description

Mechanical Grounding Connector, 2 Cables to Rod or Pipe, 4 AWG (Sol.) - 2/0 AWG (Str.), 3/8" Pipe, 5/8" - 3/4" Rod, 3/8" Stud.

Modified Industry Description

4-2/0 COP GRD CONN

AD Description

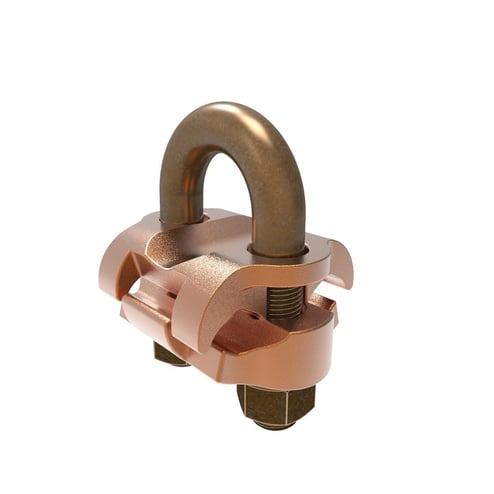

BURNDY® GP6426 Mechanical Grounding Connector, 5/8 to 3/4 in Rod, 4 to 2/0 AWG Conductor, Copper Alloy

Vendor Description

All BURNDY® mechanical grounding connectors have been designed for easy installation and for outstanding durability. Only the finest high copper alloys are used in their manufacture, ensuring top performance under the most extreme environmental conditions. UL 467 listed for direct burial applications in earth or concrete.

Specifications

Application
For Joining A Range Of Parallel Copper Cables Perpendicular To Rod, Pipe Or Column, Direct Burial In Earth Or Concrete
Bolt_Size
3/8 In
Brand Name
Burndy
Conductor_Range_Main_Primary
4 AWG Solid - 2/0 AWG Stranded
Conductor Size
4 to 2/0
Country of Origin
MX
Finish
Unplated
Material
Copper Alloy
Package_Quantity
1.000
Special Features

  • 240 in-lb installation torque
  • 3-gang/8 in bolt size
  • 3-gang/8 in IPS pipe
  • 4 AWG solid to 2/0 AWG stranded (main/primary) conductor size
  • Acceptable for direct burial in earth and concrete
  • Also used with one groove for run, the other for tap to equipment
  • High copper alloy cast body and Durium U-bolts, nuts and lock washers make the GP suitable for direct burial in the ground or concrete
  • High copper alloy ground connector for joining a range of parallel cables perpendicular to rod, pipe or column
  • Made of high strength copper alloy
Standard
UL467
Sub_Brand
Mechanical Connector
Type
GP
