Burndy Burndy YSU2R2R


Description

Industry Description

Heavy-walled AL tubing with solid barrier minimizes galvanic corrosion, Color Code:Red (Side A&B).

AD Description

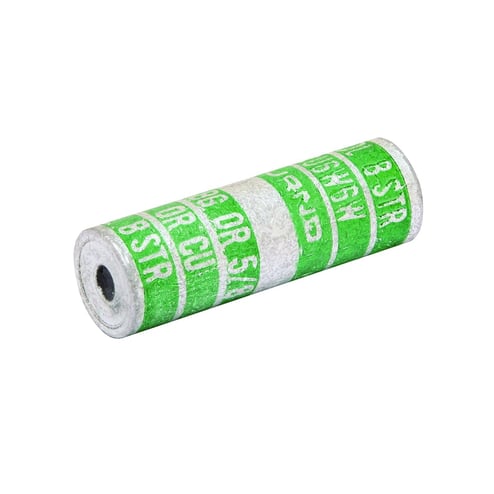

BURNDY® LINKIT™ YSU2R2R Type YSU Compression Reducer Adapter Sleeve With Solid Center Barrier, 2 to 1 AWG Aluminum/Stranded Copper Conductor, Die Code: BG, 2 in L, Aluminum

Specifications

Application
For Combinations Of Copper, Aluminum, ACSR, 6201, 5005 and Compressed Conductors
Country of Origin
US
Length1
2.0000
Material
Aluminum
Special Features

  • 2 to 1 AWG aluminum size (side a and B) cable
  • 2 to 1 AWG copper stranded size(side a and B) cable
  • Accommodates neutral strands of type SE service entrance conductor as well as other conductors
  • Color coded
  • Heavy walled aluminum tubing with solid barrier minimizes galvanic corrosion of conductors
  • Installed with standard tooling
  • Pre-filled with pene trox joint compound and stripsealed
  • Side a - 2 AWG ACSR, 2 AWG stranded and 1 AWG stranded, 1 AWG and 2 AWG al compact aluminum and copper, side b - 2 AWG ACSR, 2 AWG stranded and 1 AWG stranded, 1 AWG and 2 AWG al compact aluminum and copper
  • Tools, die set catalog number and (number of crimps) hytool OH25 tool, (1), MD6, MD7 tool, (3), MD6, MD7 tool, W-BG die, (1), OUR840 tool, X-NBG die, (1), hypress y35 tool, U-BG die, (1), Y35L, Y750 tool
Standard
TAA Compliant (All status valid till December 2024)
Sub_Brand
LINKIT
Type
Service Entrance, Uninsulated, Center Stop
