Hubbell Hubbell GFP100C15WM


Description

Industry Description

Hubbell Wiring Device Kellems, Power Protection Products, GFCILinecords, Commercial, Manual Set, 15A, 120V AC, 5-15R, 100' CordLength, 4-6 mA Trip Level, Black and Yellow

Modified Industry Description

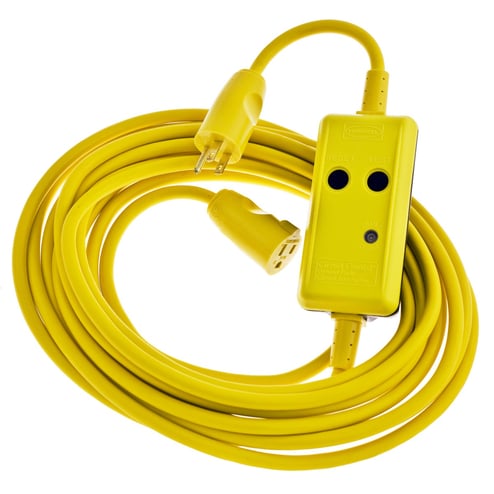

100FT. 15A120V INLINE GFCI CORD SET

AD Description

Wiring Device-Kellems Circuit Guard® GFP100C15WM Manual Portable Straight Blade GFCI Line Cord, 120 VAC, (3) 14 AWG Copper Plated Conductor, 100 ft L

Specifications

Amperage Rating
15
Application
Line Cord with Male/Female Ends
Brand Name
Hubbell
Color
Yellow
Conductor Material
Copper
Conductor Size
#14AWG
Construction
Fabricated
Country of Origin
CN
Insulation_Material
Elastomer
Jacket_Material
PVC
Number Of Conductors
3
Outside_Diameter
0.245
Package_Quantity
1
Special Features

  • After a ground fault condition, unit must be reset by pushing the reset button
  • For applications where operator injury might occur if equipment were to restart after a power failure
  • Unit must be reset by pushing the reset button upon plug in and after loss of primary power
Standard
NEMA WD1 and WD5, UL498 and UL943, UL817
Sub_Brand
Hubbell Wiring Device-Kellems
Type
Straight Blade
Voltage Rating
120
