Hubbell Hubbell HBL420S
Hubbell HBL420S
Kirby Risk #: 1808263
UPC: 00783585017877, 783585017877, 78358501787
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Surge Protective Devices, 4-PLEX, SurgeSuppression Receptacle, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Blue
Modified Industry Description
20A 125V BLUE SURGE 4-PLEX NEMA
AD Description

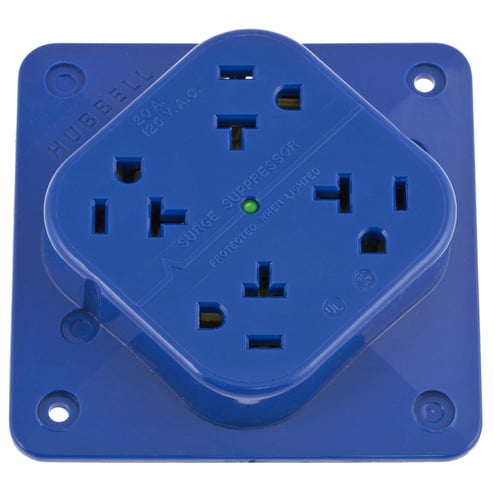

Wiring Device-Kellems SpikeShield® Circuit Guard® 4-PLEX® HBL420S Duplex Grounding Specification Grade Standard Surge Suppression Receptacle With Light, 125 VAC, 20 A, 60 Hz, 1 Phase
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
4-Plex with LED
|
| Brand Name |
Hubbell
|
| Connection |
Terminal Screws
|
| Country of Origin |
US
|
| Environmental_Conditions |
Indoor dry unless protected by an additional means
|
| Frequency_Rating |
60
|
| Material |
Composite
|
| Mounting |
Mounting Screws
|
| Operating_Temperature |
32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
|
| Outlet |
Straight Blade
|
| Phase |
1
|
| Response_Time |
Approx 5 ns
|
| Size |
Standard
|
| Special Features |
|
| Standard |
UL 1449 3rd Edition, UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type_Of_Indicators |
LED Only
|
| Type |
Surge Protection Receptacles
|
| Voltage Rating |
125
|
