Hubbell Hubbell HBL504SS
Hubbell HBL504SS
Kirby Risk #: 1806936
UPC: 783585040585, 00783585040585, 78358504058
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

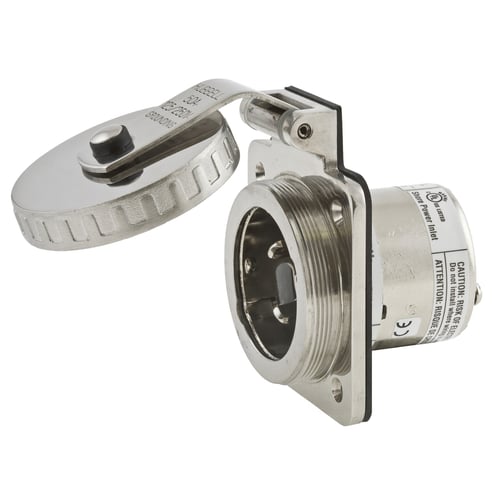

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Marine Grade,Shore Power Inlet, 50A 125/250V, 3-Pole 4-Wire Grounding, Non-NEMA,Screw Terminal, Chrome Plated Brass
Modified Industry Description
50A 125/250V INLET MARINE
AD Description
Wiring Device-Kellems Twist-Lock® HBL504SS 1-Phase Grounding Standard Sized Shore Power Inlet, 125/250 VAC, 50 A
Specifications
| Amperage Rating |
50
|
|---|---|
| Application |
Marine Wiring Devices
|
| Color |
Silver
|
| Connection |
Pressure Screw Terminals
|
| Conductor Size |
#6AWG
|
| Country of Origin |
US
|
| Environmental_Conditions |
Watertight
|
| Insulation |
Insulated Body
|
| Length1 |
9.1000
|
| Material |
Thermoplastic
|
| Mounting |
Screw Mount
|
| Number_Of_Poles |
3
|
| Phase |
1
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
Maximum Continuous: 75?° C; Minimum Continuous: -40?° C w/o impact
|
| Type |
Hull Mount Single Inlet
|
| Voltage Rating |
125/250
|
| Wattage |
12,500
|
