Hubbell Hubbell HBL45335
Hubbell HBL45335
Kirby Risk #: 1802448
UPC: 78358523658, 00783585236582, 783585236582
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

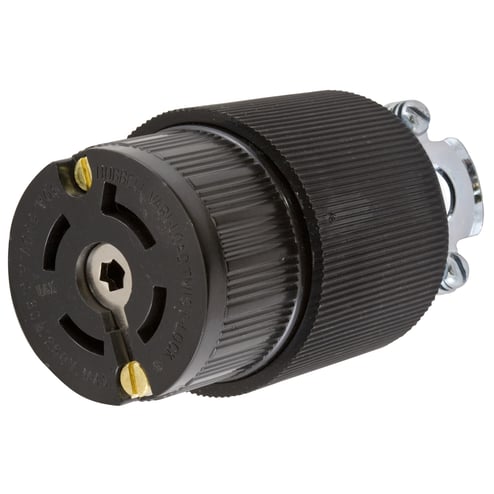

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, VariLoad,Female Connector Body, 30A 2500V DC/600V AC, 4-Pole 5-Wire Grounding,Non-NEMA, Screw Terminal, Black, Unique Center Pin
Modified Industry Description
30A 600/250V CONN BLACK
AD Description
Hubbell® Twist-Lock® Variload® HBL45335 Grounding Connector, 600 VAC, 250 VDC, 30 A, 4 Poles, 5 Wires, Black
Specifications
| Amperage Rating |
30
|
|---|---|
| Application |
Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
Black
|
| Conductor Range |
#12AWG - #8AWG
|
| Connection |
Pressure Screw Terminal
|
| Country of Origin |
PR
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Frequency_Rating |
50 to 400
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Rating |
Non-NEMA
|
| Number Of Conductors |
5-Wire Grounding
|
| Number_Of_Poles |
4
|
| Number_Of_Wires |
5
|
| Size |
2.13 X 2.13 X 3.79
|
| Special Features |
|
| Standard |
Certified to CSA C22.2 No.42;Listed to UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Connector Body
|
| Voltage Rating |
600/250
|
