Midwest Midwest R101CB2


Description

Industry Description

National Electric Code requires electrical distribution equipment to be rated as “Service Entrance”, wherever electrical power enters a building or other structure. Service entrance products are typically utilized on single-family residences and mobile homes. Midwest Electric offers a broad range of surface mount and pedestal units, factory assembled and wired. Pedestal units come standard with loop feed lugs to reduce installation time and labor expense. Service Entrance equipment is made of heavy, galvanized G-90 steel, preventing corrosion and fading.

Modified Industry Description

100A 120/240V - 6 SPACE METER BREAKER COMBO, 1 PHASE

AD Description

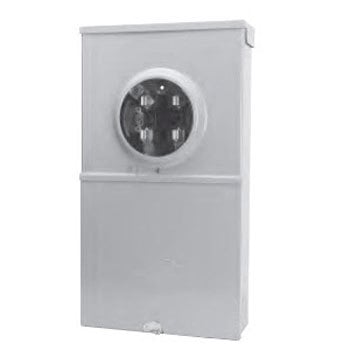

Midwest® GE R101CB2 Ringless Metered Power Outlet, 120/240 VAC, 100 A, 1 Phase, 2 AWG to 250 kcmil Wire, NEMA 3R Enclosure

Vendor Description

National Electric Code requires electrical distribution equipment to be rated as "Service Entrance", wherever electrical power enters a building or other structure. Service entrance products are typically utilized on single family residences and mobile homes. Midwest Electric offers a broad range of surface mount and pedestal units, factory assembled and wired. Pedestal units come standard with loop feed lugs to reduce installation time and labor expense. Service Entrance equipment is made of heavy, galvanized G-90 steel, preventing corrosion and fading.

Specifications

Amperage Rating
100
Brand Name
Midwest
Cable_Entry
OH/UG
Country of Origin
UKN
Cutout_Size
14 X 26
Disconnect_Type
Breaker
Enclosure
NEMA 3R
Material
Steel
Number_Of_Cutouts
1
Number_Of_Spaces
6
Phase
1
Special Features

  • 200 or 125 A continuous duty meter socket with meter guides and reinforced jaws for ring and ringless type sockets
  • All GFCI Duplexes are listed as weather resistant and tamper resistant as required by 2008 NEC in Article 406.8 and 406.11
  • All terminals accept copper or aluminum wire for added installation flexibility
  • CB4200H installed breaker
  • Doors have padlock provision to prevent unauthorized entry
  • Factory wired loop feed lugs
  • Heavy galvanized G90 16 ga steel, with highest quality electro deposition finish, resists corrosion and fading
  • Hub provision
  • LC88PC load center
  • Locking hasp for utility seal on post covers
  • No loop feed
  • One head
  • Provide circuit protection
  • Rated NEMA 3R - weather proof equipment
  • Removable post door allows lay in wiring 200 A
  • Rolled edge post bottoms to protect service cable
  • Series wiring configuration
  • Six additional breaker spaces per head
  • Supplied with 12 to 2 copper/aluminum equipment ground lug
  • Utility meter socket compartment barrier from breaker mains for utility power protection
Standard
UL Listed
Sub_Brand
Midwest
Type
Ringless
Voltage Rating
120/240
Width_2
15.0000
Width_3
36.0000
