Siemens Siemens LXD62B500
Siemens LXD62B500
Kirby Risk #: 1791449
UPC: 00783643213722, 783643213722, 78364321372
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description

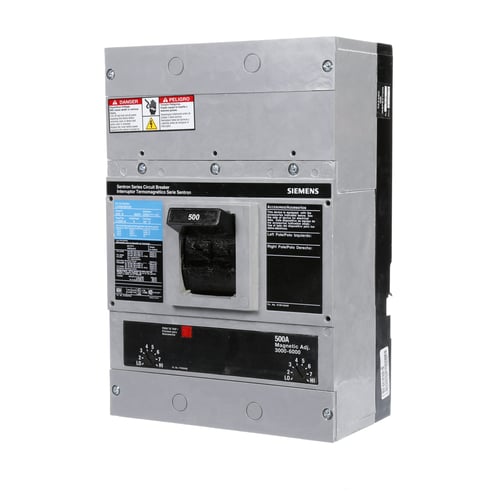

SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER LD FRAME WITH STANDARD BREAKING CAPACITY. 500A 2-POLE (25KAIC AT 600V) (35KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES NO LUGS INSTALLED. DIMENSIONS (W x H x D) IN 7.50 x 11.0 x 4.00.
Modified Industry Description
MCCB 40C 2P 500A FX-TRIP N/LUG
AD Description
Sentron™ LXD62B500 Molded Case Circuit Breaker, 600 VAC, 500 A, 25 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Vendor Description
SiemensSentronSeriesCircuit Breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens SentronSeries circuit breakers are available in nine frame sizes from 125 to 2000 A.
Specifications
| Actuator |
Varying
|
|---|---|
| Amperage Rating |
500
|
| Auxiliary_Contacts |
N/A
|
| Brand Name |
Siemens
|
| Connection |
N/A
|
| Country of Origin |
MX
|
| Enclosure |
Varying
|
| Environmental_Conditions |
N/A
|
| Frame |
LD
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
25
|
| Material |
N/A
|
| Number_Of_Poles |
2
|
| Operating_Temperature |
40C
|
| Poles |
2
|
| Special Features |
|
| Standard |
UL/HACR
|
| Sub_Brand |
Siemens
|
| Trip_range |
3000 to 6000
|
| Trip_Type |
Thermal Magnetic
|
| Type |
LXD6-A
|
| Voltage Rating |
600
|
| Width_2 |
40.0000
|
