Burndy Burndy YA29L4
Burndy YA29L4
Kirby Risk #: 1791441
UPC: 00781810554524, 78181055452, 781810554524
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Burndy
Description
Industry Description

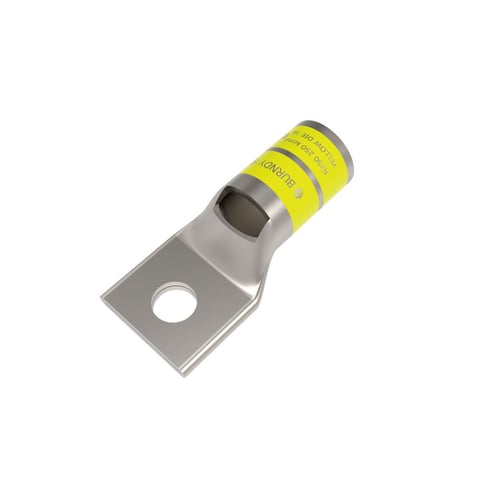

Copper Compression Lug, 1 Hole w/ Inspection Window, 250 kcmil, 3/8" Stud, Short Barrel, Tin Plated.
Modified Industry Description
CU COMPR LUG 1 HOLE 250 AWG 3/8 STUD SHORT
AD Description
BURNDY® HYLUG YA29L4 YA-L 1-Hole Compression Lug With Inspection Window, 250 kcmil Stranded Copper Conductor, Die Code: 16, 3/8 in Stud, Copper
Vendor Description
BURNDY® HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
Specifications
| Application |
Wire Termination
|
|---|---|
| Brand Name |
Burndy
|
| Color |
Yellow
|
| Conductor Size |
250
|
| Country of Origin |
US
|
| Material |
Copper
|
| Package_Quantity |
1
|
| Special Features |
|
| Standard |
UL 486A-486B
|
| Stud_Size |
3/8
|
| Sub_Brand |
Burndy
|
| Temperature_Rating |
90
|
| Type |
1-Hole
|
| Voltage Rating |
600 VAC to 35 kV
|
