Burndy Burndy YA262TC38
Burndy YA262TC38
Kirby Risk #: 1784165
UPC: 78181050239, 00781810502396, 781810502396
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Burndy
Description
Industry Description
CU Compression Terminal Code Conductor, Beveled Entry, 2 Hole/W/oInspWindow, 2/0AWG(Code) 125(Navy), 600V-35kV, 3/8" Stud, 1" Spacing, Lng bbl, Tin Plated.
Modified Industry Description
LUG
AD Description

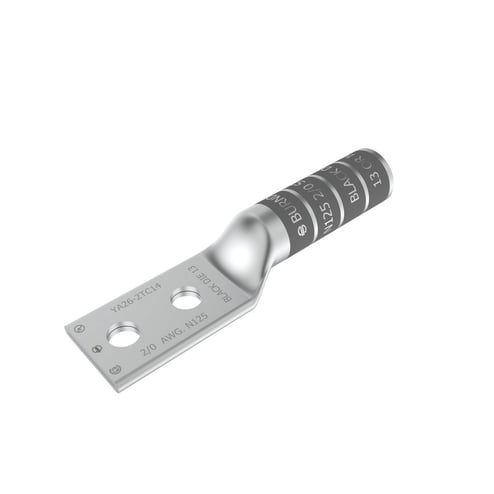

BURNDY® HYLUG YA262TC38 YA-2TC 2-Hole Compression Lug, 2/0 AWG Stranded Copper Conductor, Die Code: 13, 3/8 in Stud, Copper
Specifications
| Application |
For Code Conductor
|
|---|---|
| Brand Name |
Burndy
|
| Cable_Size |
2/0 AWG, 70 SQ-MM For Class 2 Conductor
|
| Color |
Black
|
| Conductor Material |
Copper
|
| Conductor Size |
2/0
|
| Country of Origin |
US
|
| Material |
Copper
|
| Mounting |
1 IN Stud Hole Spacing
|
| Number_Of_Holes |
2
|
| Package_Quantity |
1
|
| Special Features |
|
| Standard |
UL Listed At 90 DEG C, 600 V To 35 KV, CSA Certified, RoHS Compatible
|
| Stud_Size |
3/8
|
| Sub_Brand |
Burndy
|
| Temperature_Rating |
90
|
| Type |
2-Hole
|
| Voltage Rating |
600 VAC to 35 kV
|
