Burndy Burndy YGHP34C29


Description

Industry Description

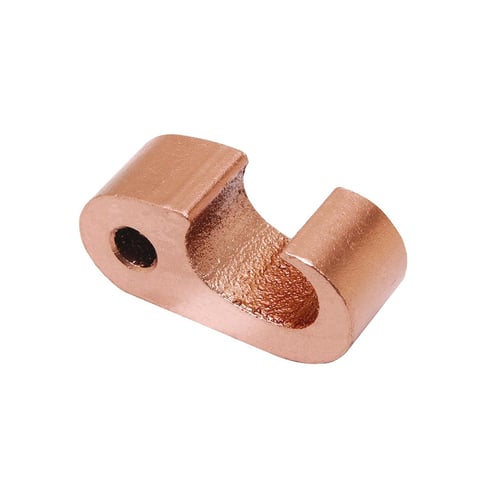

Cu Compression Ground Rod Connector, 3/0 Str - 250 Kcmil, 5/8" - 3/4" Rod Dia.

Modified Industry Description

3/0 AWG - 250 MCM COPPER COMPRESSION GROUND ROD CONNECTOR , 5/8 - 3/4 IN ROD

AD Description

BURNDY® Hytap™ YGHP34C29 Type YGHP-C Mechanical Compression Ground Rod Connector, Figure 6, 250 to 500 kcmil Main/Run, 3/0 AWG to 250 kcmil Tap, Copper

Vendor Description

BURNDY® has developed an irreversible compression ground system which meets the most stringent safety and performance requirements, including those of OSHA and nuclear power plant design. Performance excellence and long life expectancy are the system's basic design guidelines. It is a complete system which consists of connectors for grid cross connections, taps, splices, cable to ground rod, ground plates and terminations.

Specifications

Application
Grounding
Brand Name
Burndy
Conductor Type
Stranded Copper
Conductor Size
250-500
Country of Origin
US
Finish
Unplated
Material
Copper
Package_Quantity
1
Size
0.75 IN Length
Special Features

  • 250, 350, 500 kcmil conductor run size
  • 4 die sets and 8 connectors can accommodate a conductor range from 8 AWG solid through 500 kcmil plus 1/2 in, 5/8 in and 3/4 in copper bonded ground rods
  • 4/0, 3/0 AWG, 250 kcmil tap size
  • For Y750, PAT750-18V tool, PU998 die, Y45 tool, PU998 die with PT6515 adapter, S998 die, Y46 tool, PU998 die with puadp-1 adapter and P998 die
  • Irreversible compression ground tap figure 6 can be used as a tap connector or as a tap splice connector
  • Pre-filled with PENETROX® compound and strip sealed
Standard
UL467, 96 Listed, CSA Certified, RoHS Compatible, IEEE-837
Sub_Brand
Burndy
Tap_Size
3/0 AWG to 250 kcmil
Type
Type YGHP-C Mechanical
