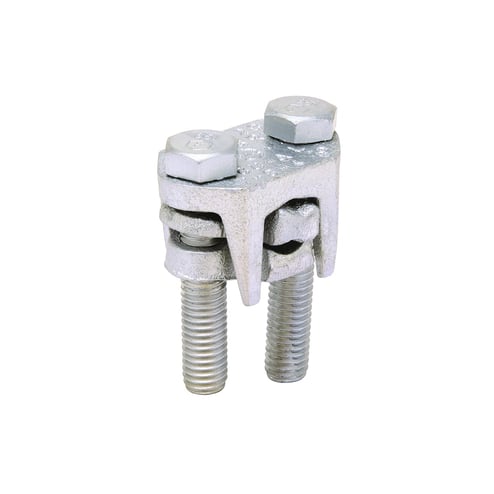

Burndy Burndy KVSU44


Description

Industry Description

Tin-plated copper alloy connector with tin plated silicon bronze hardware. Spacer bar separates dissimilar conductors and provides long contact length,Tightening torque:500 in -lb,wrench size:5/16 cross flats.

AD Description

BURNDY® OKLIP™ KVSU44 Compact High Strength Universal Mechanical Connector, 5/16 to 1-5/16 in, 1000 kcmil to 1/2 in Commercial Aluminum/Solid/Stranded Copper Conductor, 3/8 in, Copper Alloy

Specifications

Application
For All Combinations of Copper, Aluminum, ACSR, AAAC And 5005, Heavy Duty Connections
Country of Origin
MX
Length1
2.0000
Material
Copper
Special Features

  • 5/16 in cross flats wrench
  • 7/8 (19) to 1-1/8 (37) in galvanized steel size
  • Compact, high strength, tin plated copper alloy 2-piece connector with spacer and tin plated silicon bronze durium hardware
  • Longer peened bolt permits swivel action for easier installation
  • Neoprene ring prevents loss of shorter bolt during installation
  • Recommended for heavy duty dissimilar metal connection applications
  • Spacer separates dissimilar conductors and provides long contact length
  • Use of PENETROX® joint compound recommended with aluminum and ACSR
Sub_Brand
OKLIP
Type
KVSU, Universal
