Midwest Midwest U054C
Midwest U054C
Kirby Risk #: 1778812
UPC: 78456757010, 784567570106, 00784567570106
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Midwest
Description
Industry Description
Midwest ElectricÂ’s Temporary Power and Power Outlets are a means of providing power required by various construction trades, residential sites, and mobile electrical applications. Temporary Power and Power Outlets offer one or more receptacles, with or without overcurrent protection, disconnecting, metering, and/or pedestal mounting functions, in a single enclosure of G-90 zinc-coated steel. The NEMA 3R rainproof enclosure is lockable and engineered to provide maximum protection against weather, vandalism, and normal field use.
Modified Industry Description
POST MTR PWR OUTLET
AD Description

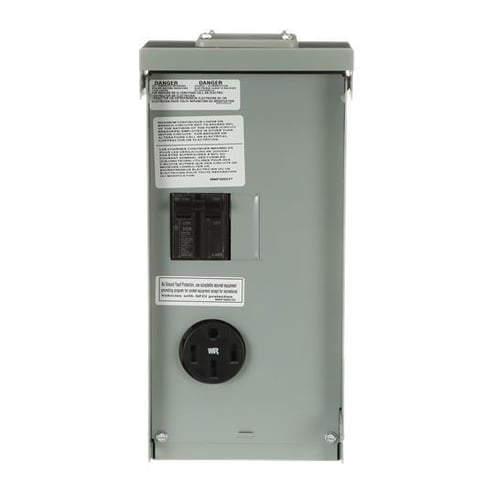

Midwest® GE U054C Heavy Duty Unmetered Power Outlet Panel, 120/240 VAC, 70 A, 1 Phase, 14 to 8 AWG, 14 to 2 AWG, 12 to 8 AWG, 12 to 2 AWG Wire, Surface Mount
Vendor Description
Midwest Electric's Temporary power and power outlets are a means of providing power required by various construction trades, residential sites, and mobile electrical applications. Temporary power and power outlets offer one or more receptacles, with or without overcurrent protection, disconnecting, metering, and/or pedestal mounting functions, in a single enclosure of G-90 zinc-coated steel. The NEMA 3R rainproof enclosure is lockable and engineered to provide maximum protection against weather, vandalism, and normal field use.
Specifications
| Amperage Rating |
70
|
|---|---|
| Brand Name |
Midwest
|
| Cable_Entry |
Knockout Code (G): 1/2, 3/4, 1 IN; Knockout Code (N): 1/2, 3/4, 1, 1-1/4, 1-1/2 IN
|
| Country of Origin |
UKN
|
| Cutout_Size |
6 X 14
|
| Number_Of_Cutouts |
1
|
| Phase |
1
|
| Special Features |
|
| Standard |
UL/CUL listed
|
| Sub_Brand |
Midwest
|
| Type |
Unmetered Power Outlet
|
| Voltage Rating |
120/240
|
| Width_2 |
10.7500
|
| Width_3 |
36.0000
|
