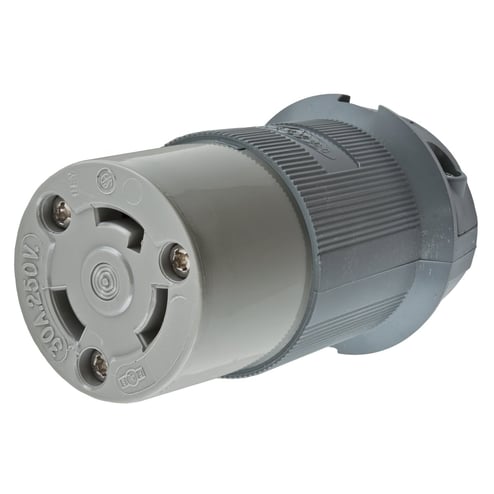

Hubbell Hubbell HBL2623F


Description

Industry Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Female Connector Body, 30A 250V, 2-Pole 3-Wire Grounding, L6-30R, ScrewTerminal, Gray, High Temp Version

Modified Industry Description

LOCKING FEMALE CONN NEMA L6-30R

AD Description

Wiring Device-Kellems Insulgrip® Twist-Lock® HBL2623F Locking Connector, 250 VAC, 30 A, 2 Poles, 3 Wires, Gray

Specifications

Amperage Rating
30
Application
Heavy Duty Industrial
Brand Name
Hubbell
Color
Gray
Conductor Range
#12AWG - #8AWG
Connection
Pressure Screw Terminal
Country of Origin
PR
Enclosure
IP20
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Material
Nylon
Mounting
Cord Mounted
NEMA_Rating
NEMA L6-30R
Number Of Conductors
3-Wire Grounding
Number_Of_Poles
2
Number_Of_Wires
3
Size
Standard
Special Features

  • 2000 VAC minimum withstand dielectric voltage
  • 30 A 10 AWG terminal accommodation
  • Brass blade
  • Certified for current interrupting at full rated current
  • Clear polycarbonate terminal retainer material
  • Clear, funnel shaped wire entry for ease of termination
  • Gray nylon cord clamp screw
  • HB or better per UL 94 or CSA 22.2 NO 0.6 flammability
  • High temp style
  • Integral dust shield protects wiring chamber from dust or contaminants
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75
  • Natural white nylon blade holder
  • Nickel plated cold rolled steel terminal clamp
  • NO 10 to 32 bronze ground screw
  • NO 10 to 32 bronze terminal screw
  • Stainless steel body holding screw
  • Superior cord grip design protects terminations from excess strain
  • Terminals identified in accordance with UL 498 (X, Y, Z, white, green)
Standard
NEMA WD1 and WD5, UL498
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
-40 to 75
Type
Insulgrip
Voltage Rating
250
