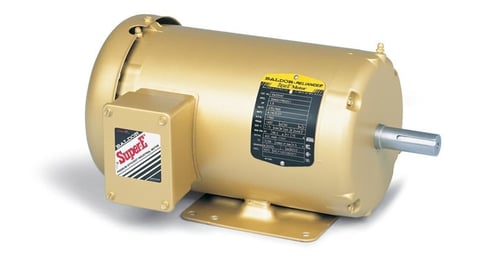

Baldor Baldor EM3554T
Baldor EM3554T
Kirby Risk #: 1777170
UPC: 00781568138885, 78156813888, 781568138885
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Baldor
Description
Industry Description
Baldor Electric; AC Motor; Temperature Rating: 40 DEG C Amabient Condition; Horsepower: 1.5 HP; Phase: 3 PH; Voltage Rating: 230/460 VAC; Full Load Current: 4.5-4.4/2.2 AMP; Power Factor: 73; Service Factor: 1.15; Enclosure: TEFC; Frame: 145T; Insulation
Modified Industry Description
1.5HP 1760RPM 3PH 60HZ 145T 3526M TEFC F1
Specifications
| Amperage Rating |
2
|
|---|---|
| Application |
General Purpose
|
| Base |
Rigid
|
| Brand Name |
Baldor
|
| Country of Origin |
US
|
| Duty |
Continuous
|
| Efficiency |
86.5
|
| Enclosure |
TEFC
|
| Frame |
145T
|
| Frequency_Rating |
60
|
| Full_Load_Current |
2.2/4.4/4.5
|
| Horsepower |
1 1/2
|
| Insulation_Class |
F
|
| Mounting |
F1
|
| NEMA_Configuration |
145T
|
| Phase |
3
|
| Power_Factor |
0.73
|
| Rotation |
Reversible
|
| RPM |
1760
|
| Service_Factor |
1.15
|
| Special Features |
1.5HP,1760RPM,3PH,60HZ,145T,3526M,TEFC,F
|
| Speed_Rating |
1,760 RPM
|
| Sub_Brand |
Baldor
|
| Type |
AC Motors
|
| Voltage Rating |
208-230/460
|
