Leviton Leviton 5G108-RW5

Name: Leviton 5G108-RW5
Brand: Leviton
SKU: 1776082
Price: 6.64 USD
Availability: InStock

Leviton 5G108-RW5

Kirby Risk #: 1776082

UPC: 00078477170328, 30078477170329, 078477170328, 07847717032

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Leviton

Description

Industry Description

Gigamax 5E Quickport Connector, Cat 5E, White

Modified Industry Description

WHITE 1 PORT QuickPort Connector, Cat 5E

AD Description

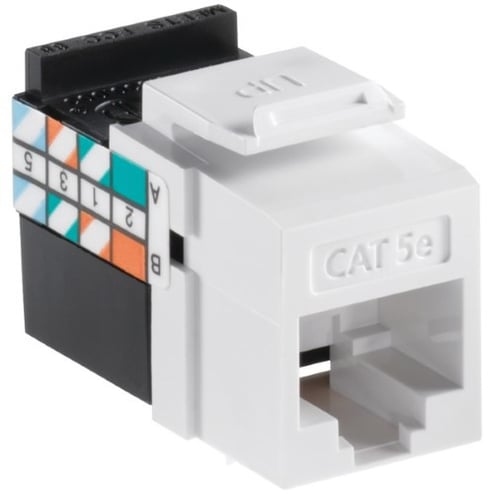

Leviton® GigaMax® QuickPort® 5G108-RW5 8-Conductor 8-Position UTP Connector, Cat 5e Module, Panel/Surface Mount, 1 Port, Plastic, White

Application	Commercial
Brand Name	Leviton
Color	White
Country of Origin	US
Environmental_Conditions	Flammability (Rated V-0 Per UL94)
Material	Plastic
Mounting	Wallplate, Panel
Number Of Conductors	8
Number_Of_Ports	1
Size	0.89 H X 0.64 W X 1.17 D
Special Features	Dual wiring code label allows connector to be wired to either T568A/T568B Fire retardant Individual port configurability allows specification flexibility Narrow body connector allows high port density in a small area Performance supports high megabit and shared sheath application Permanently laser engraved Phosphor bronze contact material Robust 1-piece lead frame design To ID ports, use different colored modules for each application
Standard	ANSI\TIA-568-C.2;cULus Listed;TIA-1096-A;CSA Certified
Sub_Brand	Leviton
Type	CAT 5e Quickport Connector
Width_2	5.5000
