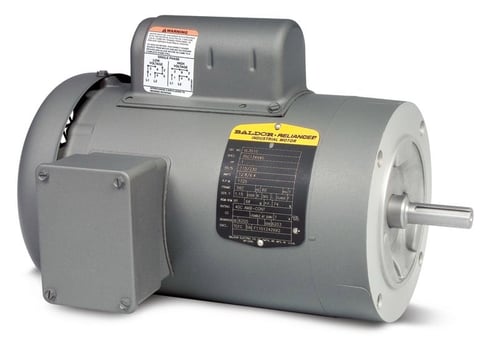

Baldor Baldor VL3501
Baldor VL3501
Kirby Risk #: 1774650
UPC: 00781568109014, 78156810901, 781568109014
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Baldor
Description
Industry Description
Baldor Electric; AC Motor; Phase: 1 PH; Voltage Rating: 115/230 VAC; Torque Rating: 1 LB-FT Full Load, 2.95 LB-FT Break Down, 2.55 LB-FT Pull-Up, 3.6 LB-FT Locked-Roter At 230 V, 60 HZ, 0.33 HP; Insulation Class: B; Horsepower: 0.33 HP; Speed Rating: 1725
Modified Industry Description
.33HP 1725RPM 1PH 60HZ 56C 3414L TEFC F1
Specifications
| Amperage Rating |
3
|
|---|---|
| Application |
General Purpose
|
| Base |
No mounting
|
| Brand Name |
Baldor
|
| Country of Origin |
US
|
| Duty |
Continuous
|
| Efficiency |
60.0
|
| Enclosure |
TEFC
|
| Frame |
56C
|
| Frequency_Rating |
60
|
| Full_Load_Current |
3/6
|
| Horsepower |
1/3
|
| Insulation_Class |
F
|
| Mounting |
F1
|
| NEMA_Configuration |
56C
|
| Phase |
1
|
| Power_Factor |
0.06
|
| Rotation |
Reversible
|
| RPM |
1725
|
| Service_Factor |
1.35
|
| Special Features |
.33HP,1725RPM,1PH,60HZ,56C,3414L,TEFC,F1
|
| Speed_Rating |
1,725 RPM
|
| Sub_Brand |
Baldor
|
| Type |
AC Motors
|
| Voltage Rating |
115/230
|
