Juno Juno IC1


Description

Industry Description

4" IC Incandescent Housing, Compact Size

Modified Industry Description

4 IN IC INCANDESCENT HOUSING

AD Description

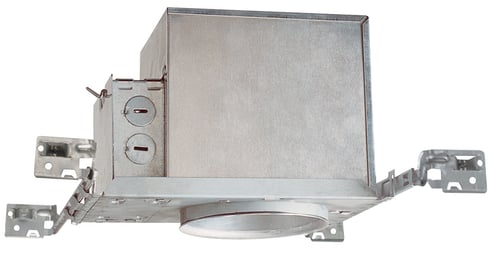

Juno® Air-Loc® IC1 Miniature Universal Recessed Lighting Housing, Incandescent Lamp, IC Insulation, 120 VAC, 4-1/2 in Ceiling Opening, Aluminum Housing

Specifications

Aperture_Size
4-in
Application
Recessed Residential
Brand Name
Juno
Color
Unfinished
Construction
New Construction
Country of Origin
MUL
Diameter
4
Dimensions
9.125 x 6.0 x 6.125
DimensionsInches
9.125 x 6.0 x 6.125
Environmental_Conditions
Indoor, Damp Location, IC
Installation
New Construction
Lamp_Type
Incandescent
Material
Aluminum
Mounting
Recessed
Number_Of_Lamps
1
Opening_Size
4-3/8
Special Features

  • 22 ga die-formed galvanized steel mounting frame
  • A19/R14/R16/R20/PAR16/PAR20 lamps
  • Air-Loc® housing stops infiltration and exfiltration of air, reducing heating and cooling costs
  • Can be completely covered with insulation
  • Energy efficient, sealed inner housing does not require separate ALG gasket
  • Fully sealed Air-Loc® housing, double wall construction
  • Inner housing is vertically adjustable to accommodate up to a 1-3/4 in ceiling thickness
  • Medium base porcelain socket with nickel plated copper screw shell
  • Patented (US Patent D552, 969) Real Nail® 3 bar hangers feature patented break away bars for tight joist spacing
  • Patented (US Patent D552, 969) Real Nail® 3 bar hangers telescoping system with pre-installed removable nail for repositioning and integral T-bar mounting feature for suspended ceilings
  • Pre-wired junction box with (6) 1/2 in and (1) 3/4 in knockouts with pryout slots, (4) non-metallic sheathed cable connectors and ground wire
  • Shadow-free, knife edge trim design blends smoothly into the ceiling
  • Shipped with socket cap to protect against paint overspray ceilings
  • The IC rated housing can be completely covered with insulation
  • Thermally protected against improper use of insulation and lamps
  • UL listed, cUL, CSA certified for through branch wiring, maximum (6) 12 AWG minimum 90 deg C branch circuit conductors
  • Vertically adjustable to accommodate up to a 2 in ceiling thickness
Sub_Brand
Juno
Type
Insulated
Voltage Rating
120
