Juno Juno IC22R


Description

Industry Description

6" IC Economy Incandescent Remodel Housing

Modified Industry Description

6 IN IC Economy Incandescent Remodel Housing

AD Description

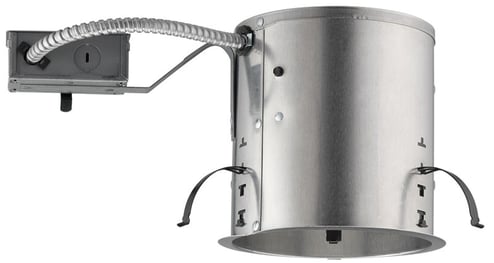

Juno® Air-Loc® IC22R IC Series Economy Remodel Universal Recessed Lighting Housing, Incandescent Lamp, IC Insulation, 120 VAC, 6-3/4 in Ceiling Opening, Aluminum Housing

Specifications

Aperture_Size
6-in
Application
Recessed Residential; Damp Location; Wet Location w/appr Trims; IC Rated; Air-Loc
Brand Name
Juno
Construction
Remodel
Country of Origin
MUL
Diameter
6
Environmental_Conditions
Indoor, Damp Location, IC
Installation
Remodel
Lamp_Type
Incandescent
Mounting
Recessed
Number_Of_Lamps
1
Opening_Size
6-5/8
Special Features

  • A19/BR30/BR40/PAR16/PAR20/PAR30/PAR30L/PAR38/R20 lamps
  • Adjustable height remodel springs accommodate up to a 1-3/4 in ceiling thickness
  • Adjustable socket plate and detachable socket with snap-in springs to accommodate various lamp and trim combinations
  • Can be completely covered with insulation
  • Double stack adjustable feature enables remodel springs to accommodate up to 1-3/4 in ceiling thickness
  • Energy efficient, sealed housing
  • IC remodel housing for remodel application where back side of ceiling is not accessible
  • Installs through an opening in the ceiling from below
  • Medium base porcelain socket with nickel plated copper screw shell
  • Offers energy efficiency with an Air-Loc® installation to stop infiltration and exfiltration of air, reducing heating and cooling costs
  • Pre-wired junction box with (5) 1/2 in and (1) 3/4 in knockouts with pry-out slots, (4) non-metallic sheathed cable connectors and ground wire
  • Secured in place by factory installed remodel springs
  • Shadow-free, knife edge trim design blends smoothly into the ceiling
  • The IC rated housing can be completely covered with insulation
  • Thermally protected against improper use of lamps or insulation
  • UL listed, cUL, CSA certified for through branch wiring, maximum (4) 12 AWG branch circuit conductors
  • When used with Air-Loc® gasket, stops infiltration and exfiltration of air, reducing heating and air cooling costs
Standard
cUL,UL
Sub_Brand
Juno
Type
Economy Remodel Universal
Voltage Rating
120
