Juno Juno IC44N


Description

Industry Description

4" IC Low Voltage Incandescent Housing

Modified Industry Description

HSG-IC MAGNETIC TRANSFORMER

AD Description

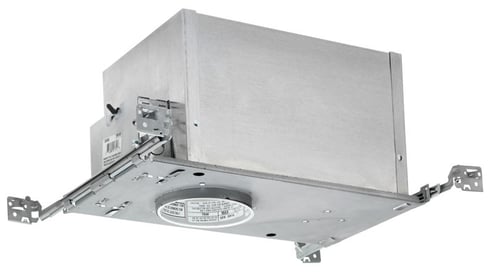

Juno® IC44N TC46 Low Voltage Universal Recessed Lighting Housing, Incandescent/MR16 Lamp, IC Insulation, 120 VAC, 4-1/2 in Ceiling Opening

Specifications

Aperture_Size
4-in
Application
Recessed Residential; Damp Location; Wet Location w/appr Trims; IC Rated; Air-Loc
Brand Name
Juno
Construction
New Construction
Country of Origin
MUL
Diameter
4
Environmental_Conditions
Indoor
Lamp_Type
MR16 Incandescent
Mounting
Recessed
Number_Of_Lamps
1
Special Features

  • 120 VAC/12 VDC, 50 VA thermally protected magnetic transformer
  • 22 ga die-formed galvanized steel mounting frame
  • Air-Loc® housing stops infiltration and exfiltration of air, reducing heating and cooling costs
  • Air-Loc® sealed double wall construction housing
  • Can be completely covered with insulation
  • Ceramic bi-pin socket with aluminum heat shield
  • Energy efficient, sealed inner housing does not require separate ALG gasket
  • Housing is vertically adjustable to accommodate up to a 1 in ceiling thickness
  • May be dimmed using dimmers specifically designed for low voltage, magnetic transformers
  • Pre-wired junction box with (6) 1/2 in and (1) 3/4 in knockouts with pryout slots, (4) non-metallic sheathed cable connectors and ground wire
  • Real Nail® 3 bar hangers feature patented break away bars for tight joist spacing
  • Real Nail® 3 bar hangers telescoping system with pre-installed removable nail for repositioning and integral T-bar mounting feature for suspended ceilings
  • The IC rated housing can be completely covered with insulation
  • Thermally protected against improper use of insulation and lamps
  • UL listed, cUL, CSA certified for through branch wiring, maximum (6) 12 AWG minimum 90 deg C branch circuit conductors
Standard
CSA,cUL
Sub_Brand
Juno
Type
Low Voltage Universal
Voltage Rating
120
