Juno Juno IC20R


Description

Industry Description

5" IC Incandescent Remodel Housing

Modified Industry Description

5 IN IC Incandescent Remodel Housing

AD Description

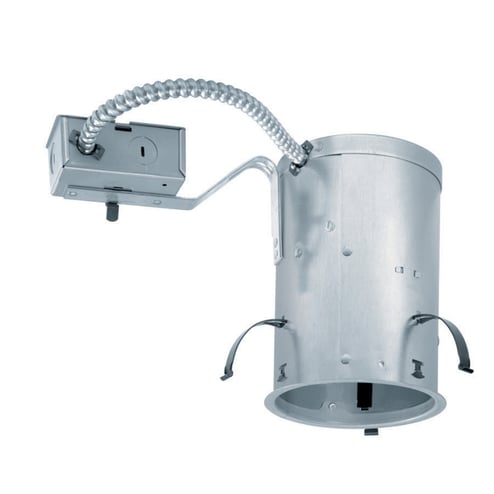

Juno® Air-Loc® IC20R Remodel Universal Recessed Lighting Housing, Incandescent Lamp, IC Insulation, 120 VAC, 5-1/2 in Ceiling Opening, Aluminum Housing

Specifications

Aperture_Size
5-in
Application
Recessed Residential; Damp Location; Wet Location w/appr Trims; IC Rated; Air-Loc
Brand Name
Juno
Construction
Remodel
Country of Origin
MUL
Diameter
5
Environmental_Conditions
Indoor, Damp Location, IC
Installation
Remodel
Lamp_Type
Incandescent
Mounting
Recessed
Number_Of_Lamps
1
Opening_Size
5-1/2
Special Features

  • 22 ga die-formed galvanized steel mounting frame
  • A19/BR30/PAR20/PAR30/PAR30L/R20/R30 lamps
  • Air-Loc® housing can be completely covered with insulation and stops infiltration and exfiltration of air, reducing heating and cooling costs
  • Can be completely covered with insulation
  • Drop socket with spring to accommodate various trim installations
  • Energy efficient, sealed housing
  • IC remodel housing for remodel application where back side of ceiling is not accessible
  • Installs through an opening in the ceiling from below
  • Medium base porcelain socket with nickel plated copper screw shell
  • Pre-wired junction box includes (5) 1/2 in knockouts with pryout slots, (4) non-metallic sheathed cable connectors and ground wire
  • Remodel spring accommodate up to 1-1/8 in ceiling thickness
  • Secured in place by factory installed remodel springs
  • Shadow-free, knife edge trim design blends smoothly into the ceiling
  • Thermally protected against improper use of lamps
  • UL listed, cUL, CSA certified for through branch wiring, maximum (4) 12 AWG branch circuit conductors
Standard
CSA,UL
Sub_Brand
Juno
Type
Remodel Universal
Voltage Rating
120
