Juno Juno IC2


Description

Industry Description

6" IC High Wattage Housing

Modified Industry Description

6 IN IC High Wattage Housing

AD Description

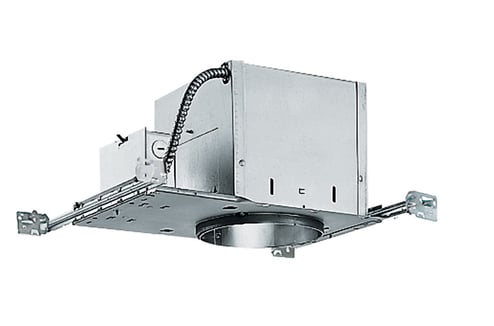

Juno® Air-Loc® IC2 Universal Recessed Lighting Housing, Incandescent Lamp, IC Insulation, 120 VAC, 6-7/8 in Ceiling Opening, Aluminum Housing

Specifications

Aperture_Size
6-in
Application
Recessed Residential; Damp Location; Wet Location w/appr Trims; IC Rated; Air-Loc
Brand Name
Juno
Color
Unfinished
Construction
New Construction
Country of Origin
MUL
Diameter
6
Environmental_Conditions
Indoor
Installation
New Construction
Lamp_Type
Incandescent
Mounting
Recessed
Number_Of_Lamps
1
Opening_Size
6-5/8
Special Features

  • 22 ga die-formed galvanized steel mounting frame
  • A19/A21/BR30/BR40/MR16/PAR16/PAR20/PAR30/PAR30L/PAR38/R20/R30 lamps
  • Double wall construction housing can be completely covered with insulation
  • Drop socket with spring to accommodate a wide variety of trim and lamp combinations
  • Energy efficient, sealed inner housing
  • Housing is fully assembled for ease of installation
  • Housing is vertically adjustable to accommodate up to a 1 in ceiling thickness
  • Inner housing is vertically adjustable to accommodate up to a 1 in ceiling thickness
  • Medium base porcelain socket with nickel plated copper screw shell
  • Patented (US Patent D552, 969) Real Nail® 3 bar hangers feature patented break away bars for tight joist spacing
  • Patented (US Patent D552, 969) Real Nail® 3 bar hangers telescoping system with pre-installed removable nail for repositioning and integral T-bar mounting feature for suspended ceilings
  • Pre-wired junction box with (5) 1/2 in and (1) 3/4 in knockouts with pryout slots, (4) non-metallic sheathed cable connectors and ground wire
  • Thermally protected against improper use of lamps or insulation
  • UL listed, cUL, CSA certified for through branch wiring, maximum (8) 12 AWG branch circuit conductors
  • When used with Air-Loc® gasket, stops infiltration and exfiltration of air, reducing heating and air cooling costs
Standard
CSA,UL
Sub_Brand
Juno
Type
Universal
Voltage Rating
120
