Southwire Southwire SJOOW-12/2-BLACK-250-UL
Southwire SJOOW-12/2-BLACK-250-UL
Kirby Risk #: 561713
UPC: 03288609839, 032886098390, 079407304417, 00032886098390
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Southwire
Description
Industry Description
12-65 CU 2/C BLACK/WHITE SJOOW BLACK 90C 300V PAPER 250Sp
Modified Industry Description
12-65 2/C CU SJOOW BLACK 90(D)C
AD Description
Royal® 56001501 Type SJOOW Flexible Cord, 300 VAC, (2) 12 AWG Annealed Stranded Bare Copper Conductor, 250 ft Spool L
Vendor Description

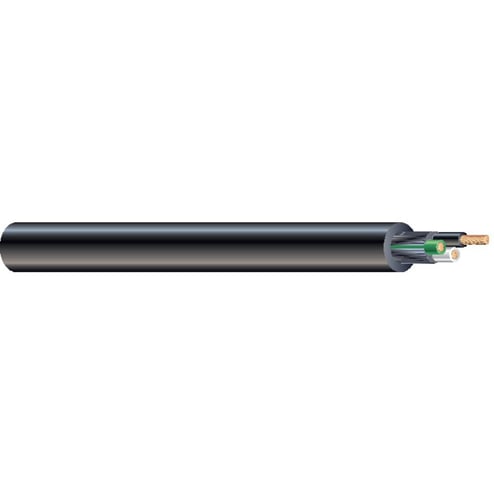

Southwire® Type SJOOW flexible cords are manufactured using bare flexible stranded Class K copper conductors, with a heat, moisture and oil resistant EPDM rubber insulation. The insulated conductors are cabled with wax paper fillers, with a tissue-paper separator wrapped around the assembly to promote easier removal of the jacket. A heat, moisture and oil resistant flexible CPE jacket is extruded over the assembly to complete the construction. Sizes 18 through 10 AWG fully annealed stranded bare copper per ASTM B-174. Some sizes may be subject to minimum order quantity.
Specifications
| Application |
FLEXCORD
|
|---|---|
| Brand Name |
Southwire
|
| Color |
Black
|
| Conductor Material |
Copper
|
| Conductor Size |
12
|
| Construction |
CPE JACKET
|
| Core |
12
|
| Country of Origin |
USA
|
| Functions |
N/A
|
| Insulation_Material |
EPDM
|
| Jacket_Material |
CPE
|
| Number Of Conductors |
2
|
| Number_Of_Outlets |
N/A
|
| Outside_Diameter |
0.415
|
| Package_Quantity |
250
|
| Plug_Type |
N/A
|
| Special Features |
|
| Standard |
UL62
|
| Sub_Brand |
Southwire
|
| Type |
SJOOW
|
| Voltage Rating |
300
|
