Southwire Southwire BARE-STR-4/0-CU-500FT-7STD

Name: Southwire BARE-STR-4/0-CU-500FT-7STD
Brand: Southwire
SKU: 561594
Price: 12319.15 USD
Availability: InStock

Southwire BARE-STR-4/0-CU-500FT-7STD

Kirby Risk #: 561594

UPC: 03288633590, 032886335907, 00032886335907

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Southwire

Description

Industry Description

4/0-7 SD CU CONV 500 FT

Modified Industry Description

4/0-7 SD CU CONV 0IN LH 500 FT

AD Description

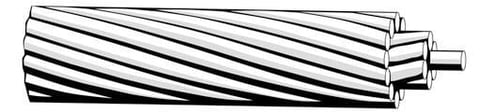

Southwire® 10704551 Bare Cable, (1) 4/0 AWG Bare Stranded Copper Conductor, 500 ft L

Amperage Rating	480
Brand Name	Southwire
Conductor Material	Copper
Conductor Type	Bare Stranded Copper
Conductor Size	4/0
Country of Origin	USA
Number Of Conductors	1
Outside_Diameter	522
Package_Quantity	500
Special Features	0.04999 Ohm/1000 ft at 20 deg C DC resistance soft-drawn 0.05172 Ohm/1000 ft at 20 deg C DC resistance medium-hard drawn 0.05199 Ohm/1000 ft at 20 deg C DC resistance hard-drawn 25 deg C ambient temperature Available in tempers hard, medium-hard, or soft Solid and stranded (classes AA and A) bare copper are suitable for overhead transmission and distribution applications Stranded conductor of greater flexibility (classes B and C) Stranded conductor of greater flexibility (classes B and C) are suitable for uninsulated hook up, jumpers and grounds in electrical construction Stranded conductors are concentrically stranded in hard and medium-hard tempers and are combination unilay stranded in the soft-drawn temper
Sub_Brand	Southwire
Type	Bare Copper
