Southwire Southwire TRI-4-PERIWINKLE-AL-1500FT

Name: Southwire TRI-4-PERIWINKLE-AL-1500FT
Brand: Southwire
SKU: 561195
Price: 2071.43 USD
Availability: InStock

Southwire TRI-4-PERIWINKLE-AL-1500FT

Kirby Risk #: 561195

UPC: 03288658681, 032886586811, 00032886586811

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Southwire

Description

Modified Industry Description

4-7 AL POLY TRIPLEX PERIWINKLE/ELEC

AD Description

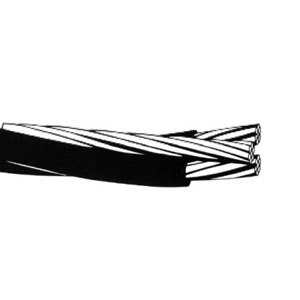

Southwire® 55412401 Electric Triplex Service Drop Cable, 600 VAC, (3) 4 AWG Stranded Aluminum Conductors, 1500 ft Reel L

Brand Name	Southwire
Conductor Material	Aluminum
Conductor Type	Stranded Aluminum
Conductor Size	4
Insulation_Material	Polyethylene
Number Of Conductors	3
Package_Quantity	1500
Special Features	45 mil thickness insulator Conductors are concentrically stranded, compressed 1350-H19 aluminum Insulated with polyethylene Neutral messengers are concentrically stranded 6201, AAC, or ACSR Periwinkle code word Southwire's triplex service drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474 To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75 deg C for polyethylene insulated conductors or 90 deg C for cross linked polyethylene (XLP) insulated conductors Used to supply power, usually from a pole-mounted transformer, to the user's service head where connection to the service entrance cable is made
Type	Triplex
Voltage Rating	600
