Southwire Southwire SER-1-3-G-500FT-ALUM
Southwire SER-1-3-G-500FT-ALUM
Kirby Risk #: 561191
UPC: 03288658475, 032886584756, 00032886584756
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Southwire
Description
Industry Description
1-1-1-3 3E AL SERVICE ENTRANCE TYPE SER PVC JACKET 500 FT
Modified Industry Description
1-1-1-3 3EAL SERV ENT.TYPE SER
AD Description

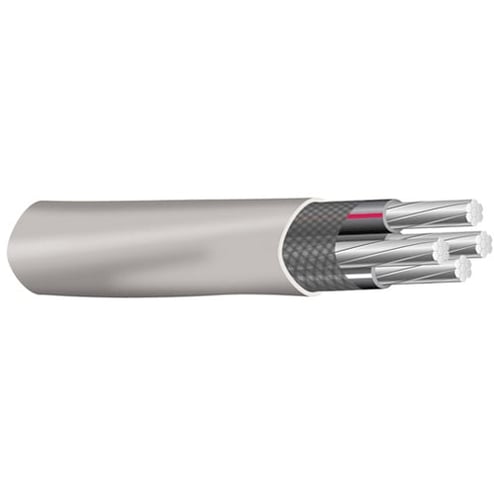

Alumaflex™ 13103701 Type SER Service Entrance Cable With Ground Wire, 600 VAC, (4) 1-1-1-3 AWG Stranded Aluminum Conductors, 500 ft Reel L, Gray
Vendor Description
Southwire type SE cable is constructed with Alumaflex™ AA-8000 series aluminum alloy, compacted stranded conductors. The conductors are covered with a sunlight resistant type XHHW-2 or type THHN/THWN-2-insulation. A reinforcement tape is wrapped around the conductors for added strength and conformity. A gray sunlight resistant polyvinyl chloride (PVC) outer jacket covers the entire assembly. Style SEU cable has two phase conductors surrounded by a concentric neutral while the SER style has two, three or four phase conductors and a bare neutral.
Specifications
| Amperage Rating |
115
|
|---|---|
| Brand Name |
Southwire
|
| Conductor Material |
Aluminum
|
| Conductor Type |
Stranded Aluminum
|
| Conductor Size |
1
|
| Country of Origin |
USA
|
| Jacket_Material |
PVC
|
| Number Of Conductors |
4
|
| Outside_Diameter |
1079
|
| Package_Quantity |
500
|
| Special Features |
|
| Sub_Brand |
Southwire
|
| Type |
SER
|
| Voltage Rating |
600
|
