Siemens Siemens HED41B025

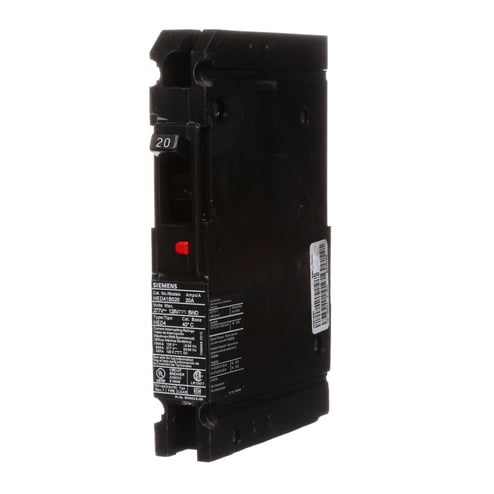

Siemens HED41B025
Kirby Risk #: 560548
UPC: 78364320983, 783643209831, 00783643209831
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH HIGH BREAKING CAPACITY. 25A 1-POLE (65KAIC AT 277V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LOAD LUGS ONLY (SA1E025) WIRE RANGE 14 - 10AWG (CU) / 12 - 10AWG (AL). DIMENSIONS (W x H x D) IN 1.00 x 6.4 x 3.92.
Modified Industry Description
HED41B025 SP 25A 277V CB
AD Description
Sentron™ HED41B025 Low Voltage Molded Case Circuit Breaker With Load Lugs, 227 VAC/125 VDC, 25 A, 25 kA Interrupt, 1 Poles, Thermal Magnetic Trip
Specifications
| Actuator |
Varying
|
|---|---|
| Amperage Rating |
25
|
| Auxiliary_Contacts |
N/A
|
| Brand Name |
Siemens
|
| Connection |
N/A
|
| Country of Origin |
MX
|
| Enclosure |
Varying
|
| Environmental_Conditions |
N/A
|
| Frame |
HED4
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
25
|
| Material |
N/A
|
| Number_Of_Poles |
1
|
| Operating_Temperature |
40C
|
| Phase |
1
|
| Special Features |
|
| Standard |
HACR
|
| Sub_Brand |
Siemens
|
| Trip_range |
N/A
|
| Trip_Type |
Thermal Magnetic
|
| Type |
Low Voltage
|
| Voltage Rating |
227 VAC/125 VDC
|
| Width_2 |
4.0000
|
| Width_3 |
6.0000
|
