Siemens Siemens QG215


Description

Industry Description

Siemens Low Voltage Residential Circuit Breakers Miniature Thermal Mag Circuit Breakers - Special App are Circuit Protection Load Center Mains, Feeders, and Miniature Circuit Breakers. Type BG Special Features Switching Neutral ApplicationElectrical Distribution Standard UL 489 Voltage Rating 120V Amperage Rating 15ATrip Range Thermal Magnetic Number Of Poles 2P

Modified Industry Description

2P 15A SWN CB

AD Description

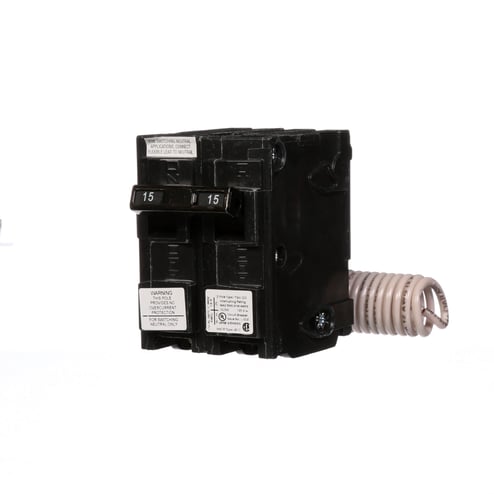

Siemens QG215 Type BG Low Voltage Miniature Residential Molded Case Circuit Breaker, 120 VAC, 15 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip

Specifications

Amperage Rating
15
Brand Name
Siemens
Connection
PLUG-IN
Country of Origin
MX
Frame
BG
Interrupt_Rating
10
Number_Of_Poles
2
Operating_Temperature
N/A
Phase
1
Special Features

  • 10 kA at 240 VAC interrupt rating
  • 2-wire common trip
  • Long time and instantaneous trip functions
  • Neutral pole of the circuit breaker does not connect to load center bus
  • One side is wired to neutral and the other side to the device
  • Switching neutral
  • Used where all conductors are required to be disconnected
Standard
UL 489
Sub_Brand
Siemens
Trip_range
Thermal Magnetic
Trip_Type
Thermal Magnetic
Type
Low Voltage Miniature Residential
Voltage Rating
120
Width_2
7.0000
Width_3
25.0000
