Siemens Siemens BQD245
Siemens BQD245
Kirby Risk #: 560442
UPC: 78364327727, 783643277274, 00783643277274
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description
BREAKER BQD 2P 45A 480VAC 14KA 10 KAIC
Modified Industry Description
BOLT ON 2POLE 45A 480VAC 14KAIR
AD Description

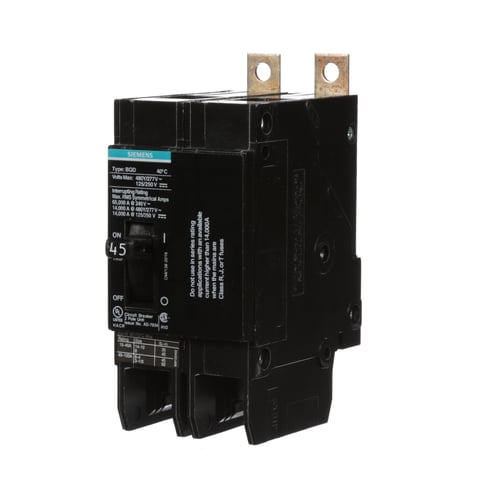

Siemens BQD245 Type BQD Molded Case Circuit Breaker, 277/480 VAC, 45 A, 14 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Vendor Description
Siemens panelboard mounting circuit breakers are designed for quick installation in Siemens panelboards and switchboards. The interlocking features allow for one screw installation which mounts the breaker line end bus tab to the panel board busbar. Ideally suited for use in lighting panels, these breakers offer HACR ratings as well as switching duty ratings for 15 to 20 A and HID ratings from 15 to 50 A.
Specifications
| Amperage Rating |
45
|
|---|---|
| Brand Name |
Siemens
|
| Color |
Black
|
| Connection |
LOW TAB
|
| Country of Origin |
MX
|
| Frame |
BQD/100A
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
14
|
| Material |
MOLDED CASE CIRCUIT BREAKER
|
| Number_Of_Poles |
2
|
| Operating_Temperature |
40DEGC
|
| Phase |
1
|
| Special Features |
|
| Standard |
UL489CSA-C22.2
|
| Sub_Brand |
Siemens
|
| Trip_Type |
Thermal Magnetic
|
| Type |
BQD
|
| Voltage Rating |
480/277
|
| Width_2 |
5.0000
|
| Width_3 |
3.0000
|
