Siemens Siemens NXD62B120

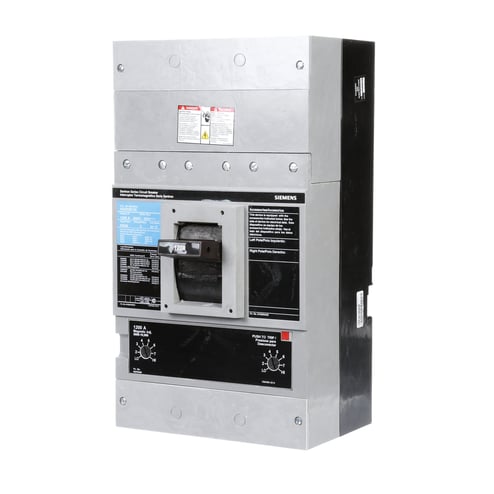

Siemens NXD62B120
Kirby Risk #: 560429
UPC: 78364326789, 783643267893, 00783643267893
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER ND FRAME WITH STANDARD BREAKING CAPACITY. 1200A 2-POLE (25KAIC AT 600V) (50KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES NO LUGS INSTALLED. DIMENSIONS (W x H x D) IN 9.00 x 16.0 x 6.00.
Modified Industry Description
2P 1200A BREAKER
AD Description
Sentron™ NXD62B120 Type NXD6 Low Voltage Molded Case Circuit Breaker, 600 VAC/250 VDC, 1200 A, 25 kA Interrupt, 2 Poles, Thermal Magnetic/LI Trip
Vendor Description
Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 A to 2000 A.
Specifications
| Actuator |
Varying
|
|---|---|
| Amperage Rating |
1200
|
| Application |
Standard 40C Breaker
|
| Class |
NIZ
|
| Connection |
N/A
|
| Country of Origin |
MX
|
| Dimensions |
16 in H x 9 in W x 6 in D
|
| Enclosure |
Varying
|
| Environmental_Conditions |
N/A
|
| Frame |
ND
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
25
|
| Length1 |
12.0000
|
| Material |
N/A
|
| Mounting_Type |
Bolt-On
|
| Number_Of_Poles |
2
|
| Operating_Temperature |
40C
|
| Phase |
1-Phase
|
| Special Features |
|
| Standard |
UL/HACR
|
| Sub_Brand |
Siemens
|
| Temperature_Rating |
40
|
| Type |
Type NXD6 Low Voltage
|
| Voltage Rating |
600 VAC/250 VDC
|
