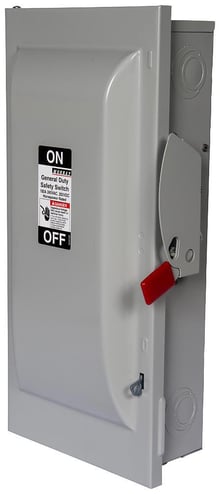

Siemens Siemens GNF323


Description

Industry Description

Siemens Low Voltage Circuit Protection General Duty Safety Switch. 2-Pole or 3-Pole Non-Fused in a type 1 enclosure (indoor). Rated 240VAC (100A). Horse power 1-PH 2-W (15), 3-PH 3-W (30), 250VDC (20). Special features service entrance labeled suitable for 3-PH motor loads.

Modified Industry Description

100A 240V - NON FUSED NEMA 1 SAFETY SWITCH, 3 POLE, GENERAL DUTY

AD Description

Siemens GNF323 Enclosed General Duty Low Voltage Non-Fused Safety Switch, 240 VAC, 100 A, 15 hp, 20 hp, TPST Contact, 3 Poles

Specifications

Action
SINGLE THROW
Actuator
SINGLETHROW
Amperage Rating
100
Brand Name
Siemens
Connection
MECHANICALLUGS
Country of Origin
MX
Enclosure
Type 1
Environmental_Conditions
Indoor
Frequency_Rating
60
FuseClassProvision
Non Fusible
Insulation
None
Material
Steel
Mounting
2 OR 3 POINT MOUNTING HOLES
NEMA_Configuration
1
Number_Of_Poles
3
Number_Of_Wires
3
Operating_Cycles
10k
Operating_Temperature
(-20F-120F) AMBIENT TEMPERATURE
Phase
1/3
Poles
3
Special Features

  • A unique enclosure design that adds rigidity and strength, its rolled edge prevents cuts and scrapes to conductors and to installers hands
  • Cover interlock
  • Generous wiring gutters that meet or exceed NEC® wire bending space requirements
  • Handle and cover padlocking provisions
  • Highly visible red handle grip
  • Informative door labeling which includes replacement parts list
  • Positive 2 or 3-point mounting
  • Quick-make, quick-break operating mechanism that ensures positive operation
  • Side hinged door that opens 180 deg for easier wiring
  • Tangential knockouts through 600 A for easy conduit lineup
  • Visible blade, double break switching action
  • Without insulation
Standard
UL
Sub_Brand
Siemens
Type
Enclosed Low Voltage Non-Fused
Voltage Rating
240
Wattage
3
