Siemens Siemens B3100
Siemens B3100
Kirby Risk #: 559894
UPC: 78364326380, 783643263802, 00783643263802
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description
Siemens Low Voltage Molded Case Circuit Breakers Panelboard Mounting 240V Circuit Breakers - Type BL, 3-Pole, 240VAC are Circuit Protection Molded Case CircuitBreakers. Type BL Application Electrical Distribution Standard UL 489 Voltage Rating 240V Amperage Rating 100A Trip Range Thermal Magnetic Interrupt Rating 10 AIC Number Of Poles 3P
Modified Industry Description
100A 240V - 3 POLE TYPE BL CIRCUIT BREAKER
AD Description

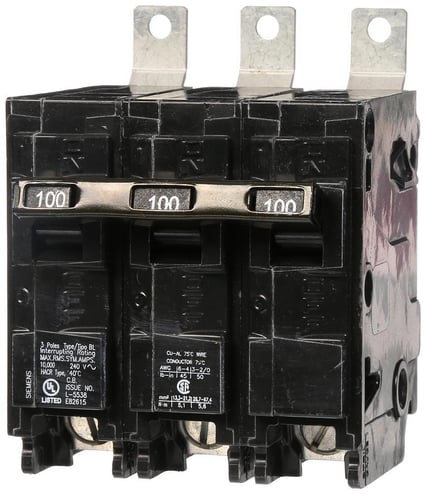

Siemens B3100 Type BL Low Voltage Molded Case Circuit Breaker, 240 VAC, 100 A, 10 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Vendor Description
Circuit breakers provide a manual means of energizing and de-energizing a circuit. In addition, circuit breakers provide automatic over current protection of a circuit. A circuit breaker allows a circuit to be reactivated quickly after a short circuit or overload is cleared. Unlike fuses, which must be replaced when they open, a simple flip of the breakers operating handle restores the circuit.
Specifications
| Amperage Rating |
100
|
|---|---|
| Brand Name |
Siemens
|
| Connection |
Lug In/Lug Out
|
| Country of Origin |
MX
|
| Enclosure |
N/A
|
| Environmental_Conditions |
N/A
|
| Frame |
BL
|
| Frequency_Rating |
60
|
| Interrupt_Rating |
10
|
| Material |
N/A
|
| Mounting |
Bolt On
|
| Number_Of_Poles |
3
|
| Operating_Temperature |
N/A
|
| Phase |
3
|
| Poles |
3
|
| Special Features |
|
| Standard |
UL Listed, HACR Rated
|
| Sub_Brand |
Siemens
|
| Trip_range |
Thermal Magnetic
|
| Trip_Type |
Thermal Magnetic
|
| Type |
Low Voltage
|
| Voltage Rating |
240
|
| Width_2 |
4.5000
|
| Width_3 |
9.0000
|
