Intermatic Intermatic K4221C
Intermatic K4221C
Kirby Risk #: 550591
UPC: 07827500202, 078275002029, 50078275002024, 00078275002029
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Intermatic
Description
Industry Description
The 120 V 50/60 Hz. 1800 Watt "T" Swivel Mounting The K4200 Series Photo Controls feature stern and swivel mounting, with thermal-type controls. Thermal-type photo controls, which are available in single or multi-voltage models, provide dusk-to-dawn lighting control and a delay action, which eliminates loads switching OFF due to car headlights, and lightning. The thermal-type controls feature a cadmium sulfide photocell and a sonic-welded polycarbonate case and lens to seal out moisture. The design utilizes a dual temperature compensating bi-metal and composite resistor for reliable long life operation over ambient temperature extremes.
Modified Industry Description
1800W 120V - SWIVEL MOUNT PHOTO CONTROL
AD Description

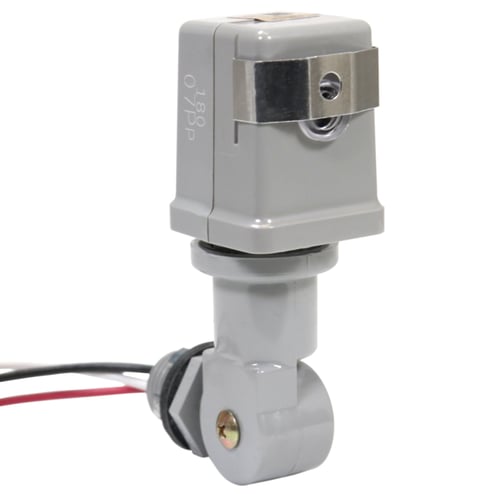

Intermatic® K4221C K4200 Stem and Swivel Mounting Photocontrol, 120 VAC, 1800 W Tungsten, 100 VA Ballast, Stem Mount, Polycarbonate
Vendor Description
The K4200 series photo controls feature stem and swivel mounting, with thermal-type controls. thermal-type photo controls, which are available in single or multi-voltage models, provide dusk-to-dawn lighting control and a delay action, which eliminates loads switching off due to car headlights and lightning. the thermal-type controls feature a cadmium sulfide photocell and a sonic welded polycarbonate case and lens to seal out moisture. the design utilizes a dual temperature compensating bi-metal and composite resistor for reliable long life operation over ambient temperature extremes.
Specifications
| Amperage Rating |
15 A, 8.3 A
|
|---|---|
| Application |
Dusk to Dawn cntrl.
|
| Ballast_Power_Rating |
1000
|
| Brand Name |
Intermatic
|
| Color |
Gray
|
| Connection |
Color coded Leads
|
| Country of Origin |
MX
|
| Enclosure |
Plastic Outdoor
|
| Environmental_Conditions |
-40 to 158 deg F Operating Temperature
|
| Frequency_Rating |
50/60
|
| Material |
Polycarbonate
|
| Mounting |
Stem Mounting
|
| Mounting_Type |
Stem
|
| Operating_Temperature |
(-)40 - 158F
|
| Power_Consumption |
3 watts Max.
|
| Sensitivity |
1 to 5 FC ON/3 to 15 FC OFF
|
| Sensor |
Cad. Sulft.
|
| Size |
1-9/16x1-9/16x3Inches
|
| Source |
Automatic Switching
|
| Special Features |
|
| Standard |
ANSI C136.10
|
| Sub_Brand |
Intermatic
|
| Supply_Voltage |
120
|
| Timing_Range |
30 to 90
|
| Tungsten_Current_Rating |
15
|
| Tungsten_Watts |
1800
|
| Type |
Thermal
|
| Voltage Rating |
120
|
| Wattage |
1800
|
