Microswitch Microswitch BZV6-2RQ62

Modified Industry Description

SPDT PLUNGER ACTION LIMIT SWITCH

AD Description

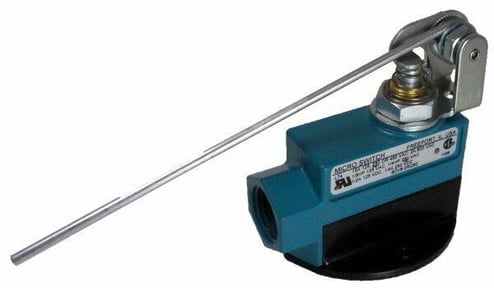

Honeywell MICRO SWITCH™ BZV6-2RQ62 E6/V6 Medium Duty Standard Limit Switch, 125/250/480/600 VAC, 125/250 VDC, 0.25 to 15 A, Low Force Rod Actuator, 1NO-1NC/SPDT Contact, 1 Pole

Vendor Description

All MICRO SWITCH E6/V6 Series Medium-Duty Limit Switches, Low Force Rod Actuator, Low Force Rod, 1NC 1NO SPDT Snap Action, 0.5 in - 14NPT conduit. MICRO SWITCH E6/V6 Series medium-duty limit switches feature an electrostatic applied epoxy coating to the zinc housings enhance the durability of the product in most environments. The E6/V6 family of switches incorporates the MICRO SWITCH BZ switch element which has the reliable snap-spring mechanism. The sealed (actuators with boots) E6 Series switches are preferred for applications where there could be exposure to liquid and/or particulate environments. The general purpose (actuators without boot seals) V6 Series switches are ideal for applications where there will not be exposure to liquid or dust environments. The compact size of these limit switches permits installation where there is limited space available on equipment. Most SPDT E6/V6 catalog listings are certified to UL, CSA, and CE while the DPDT E6/V6 catalog listings are certified to UL and CSA.
