Microswitch Microswitch DTF2-2RN-RH


Description

Modified Industry Description

SPDT PLUNGER ACTION LIMIT SWITCH

AD Description

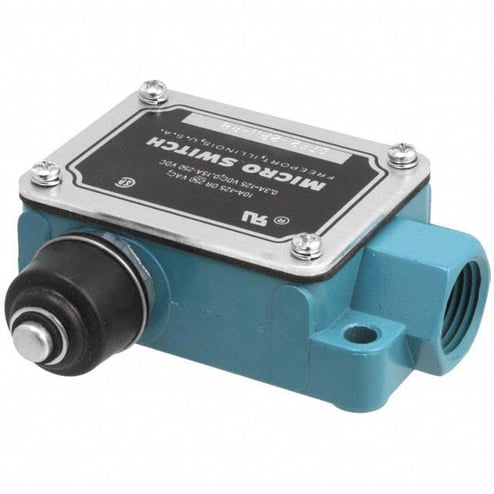

Honeywell MICRO SWITCH™ DTF2-2RN-RH BAF/DTF Enclosed Limit Switch, 125/250 VAC/125/250 VDC, 0.15 to 10 A, Top Plunger Actuator, 2NC-2NO DPDT, 2 Poles

Vendor Description

All MICRO SWITCH BAF/DTF Series High Capacity Enclosed Switches, Top Plunger Actuator, 2NC/2NO DPDT Snap Action, Actuator Position - Right. MICRO SWITCH BAF/DTF high capacity enclosed switches offer elastomer boot on sealed actuator verions that protects the actuating mechanism and the internal basic switch from contaminants. There is a seal gasket between the cover plate and the enclosures on all versions. The cover plate is removed for ease of wiring and switch replacement without demounting the switch. The actuator position is designated right or left, when looking at the nameplate.

Specifications

Action
Snap
Actuator
Top Plunger
Amperage Rating
0.15 to 10
Brand Name
Microswitch
Contact_Configuration
2NC-2NO DPDT
Material
Die Cast Aluminum
Number_Of_Poles
2
Operating_Temperature
-32 to 71
Package_Quantity
1
Special Features

  • Cast aluminum housing with three-hole mounting
  • Cover seal, captive cover screws
  • Grounding screw
  • Momentary or maintained contact
  • Right or left-handed (sealed or unsealed) actuators
  • Sealed to NEMA 1, 3, 4 and 13 requirements
  • Up to 20 A capacity
Voltage Rating
125/250 VAC/125/250 VDC
