Burndy Burndy GD2029


Description

Industry Description

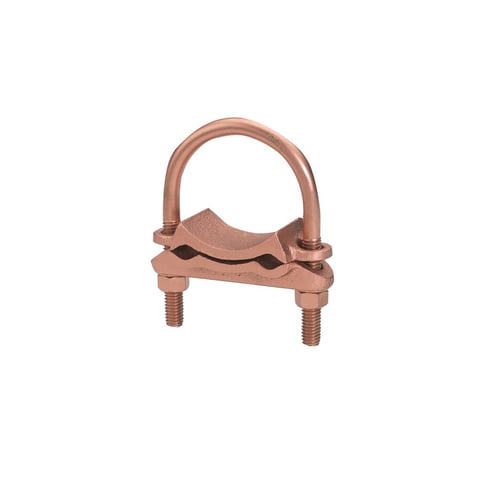

Mechanical Grounding Connector, 2 Parallel Cables to Rod or Pipe, 2/0 AWG (Sol.) - 250 kcmil, 3" to 3-1/2" Rod, 3" Pipe.

Modified Industry Description

GROUND CONN 3 PIPE TO 2 CABLES

AD Description

BURNDY® GD2029 Mechanical Grounding Connector, 3 to 3-1/2 in Rod, 2/0 AWG to 250 kcmil Conductor, Copper Alloy

Vendor Description

All BURNDY® mechanical grounding connectors have been designed for easy installation and for outstanding durability. Only the finest high copper alloys are used in their manufacture, ensuring top performance under the most extreme environmental conditions. UL 467 listed for direct burial applications in earth or concrete.

Specifications

Application
For Joining A Range Of Two Parallel Copper Cables To Rod Or Pipe And Burial In Ground Or Concrete
Bolt_Size
3/8 In
Brand Name
Burndy
Conductor_Range_Main_Primary
2/0 AWG Solid - 250 KCMIL
Conductor Size
2/0 AWG to 250 kcmil
Country of Origin
MX
Finish
Unplated
Material
Copper Alloy
Package_Quantity
1
Special Features

  • 2/0 AWG solid to 250 kcmil (main/primary) conductor size
  • 240 in-lb installation torque
  • 3-gang in IPS pipe
  • 3-gang/8 in bolt size
  • Acceptable for direct burial in earth and concrete
  • Especially good for grounding fence posts
  • High copper alloy cast body with Durium U-bolts, nuts and lock washers make the gd suitable for burial in ground or concrete
  • High copper alloy ground connector for joining a range of two parallel cables to rod or pipe
  • Made of high strength copper alloy
Standard
UL467 Listed, Complies With NFPA 78-86 HEAVY DUTY Stacks, RoHS Compatible
Sub_Brand
Burndy
Type
GD
