Burndy Burndy YA30-2LN
Burndy YA30-2LN
Kirby Risk #: 540998
UPC: 78181050467, 781810504673, 00781810504673
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Burndy
Description
Industry Description

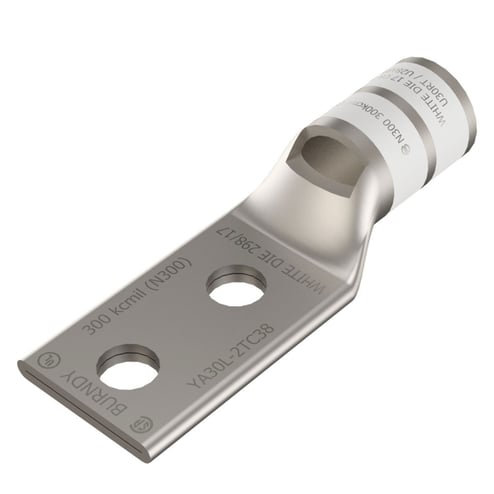

Copper Compression Lug, 2 Hole w/ Inspection Window, 300 kcmil, 1/2" Stud, 1-3/4" Stud Hole Spacing, Short Barrel, Tin Plated.
Modified Industry Description
CU COMPR LUG 2 HOLE 300 AWG 1/2 STUD SHORT
Specifications
| Application |
For Code Conductor
|
|---|---|
| Brand Name |
Burndy
|
| Cable_Size |
300 KCMIL, 150 SQ-MM For Class 2 Conductor
|
| Color |
White
|
| Conductor Material |
Copper
|
| Conductor Size |
300
|
| Country of Origin |
US
|
| Material |
Copper
|
| Mounting |
1-3/4 IN Stud Hole Spacing
|
| Number_Of_Holes |
2
|
| Package_Quantity |
1
|
| Special Features |
|
| Standard |
UL Listed At 90 DEG C, 600 V To 35 KV, CSA Certified, RoHS Compatible
|
| Stud_Size |
1/2
|
| Sub_Brand |
Burndy
|
| Temperature_Rating |
90
|
| Type |
2-Hole
|
| Voltage Rating |
600 VAC to 35 kV
|
