Burndy Burndy KSU29


Description

Industry Description

Tin-plated, high strength copper alloy SERVIT with spacer. Spacer seperates dissimilar conductors and provides long contact length that prevents high pressure point contacts between run and tap conductors, 2.50 IN L.

AD Description

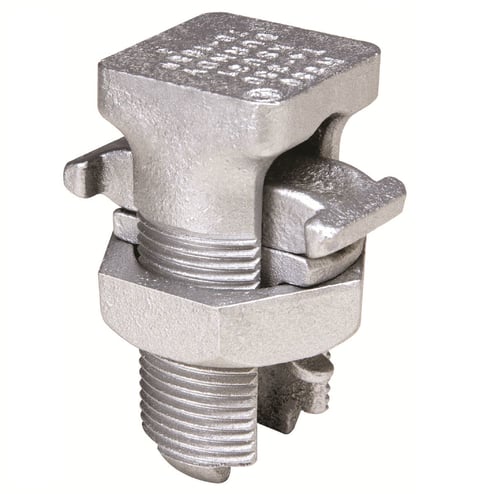

BURNDY® SERVIT® KSU29 Universal Split Bolt Connector, (1) 1 AWG to 250 kcmil, 8 AWG to 250 kcmil Conductor, 2-1/2 in L, Copper Alloy

Specifications

Application
For All Combinations Of Copper, Aluminum, ACSR, AAAC, 5005, And Steel
Country of Origin
US
Length1
2.6600
Material
Copper
Special Features

  • 1 AWG to 250 kcmil main/primary, 8 AWG to 250 kcmil tap/secondary
  • 1.38 in across flats
  • 8 AWG to 250 kcmil of copper tap range, 1 AWG to 250 kcmil copper stranded run (range)
  • Conductor type - run ACSR, 5005, AAAC, commercial stranded aluminum, commercial stranded and solid copper, tap - ACSR, 5005, AAAC, commercial stranded aluminum, commercial stranded and solid copper, steel (nominal diameter)
  • High conductivity copper alloy
  • Spacer separates dissimilar conductors and provides long contact length that prevents high pressure point contacts between run and tap conductors
  • Tin plated, high strength copper alloy SERVIT with spacer
  • Use of PENETROX™ joint compound recommended with aluminum and ACSR
Sub_Brand
UNIVERSAL SERVIT
Type
KSU, Universal
