3M 3M FP301-3/4-50


Description

Industry Description

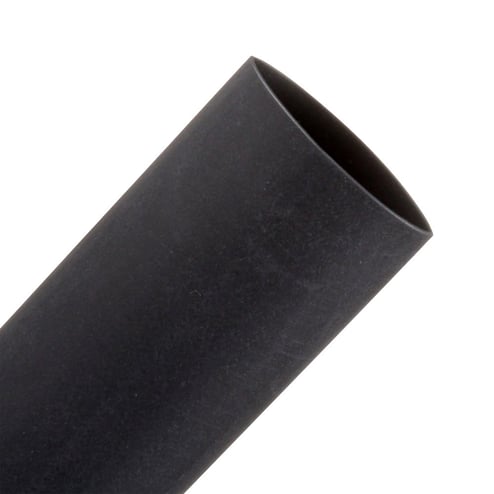

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Modified Industry Description

3/4 Thin Wall 50 ft Black Spool

Specifications

Brand Name
3M
Color
Black
Continuous_Operating_Temperature
-67 degrees to 275 degrees
Country of Origin
US
Dielectric_Strength
900
Flammability_Rating
Pass
Heat_Aging
Elongation 175%
Heat_Shock
No dripping, clowing, cracking, passes mandrel wrap test
Inside_Diameter
0.375
Label_Description
3M(TM) HEAT SHRINK THIN-WALL TUBING FP-301-3/4-BLACK-50`, 3/4 IN X 50 FT SPOOL, 150 FT PER CASE
Low_Temperature_Flexibility
No Cracking
Minimum_Shrink_Temperature
212 degrees
Outside_Diameter
0.75
Package_Quantity
150
Shrink_Ratio
2 to 1
Special Features

  • +/-5% longitudinal change
  • 0.2% water absorption
  • 1.3 specific gravity
  • 10 years shelf life from date of manufacture
  • 10^15 Ohm-cm volume resistivity
  • 175 % elongation for 336 hr at 175 deg C heat aging
  • 2400 psi tensile strength
  • 900 V/mil dielectric strength
  • Balances electrical, physical and chemical properties for various industrial and military applications
  • Low temperature flexibility, no cracking
  • No dripping, flowing, cracking heat shock
  • Offers shrink fit protection and strain relief of wires, solder joints, terminals and connections
  • Suitable for lightweight wire harness covering, fire-resistant covering, wire marking, wire bundling and component packaging
  • Used as a shrink fit electrical insulation over cable splices and terminations
Standard
UL, CSA, ABS
Sub_Brand
3M
Thickness
0.03
Type
Single (Thin) Wall
Volume_Resistivity
10(15) ohm/cm
